83347E 009100

Active

Belden Inc.

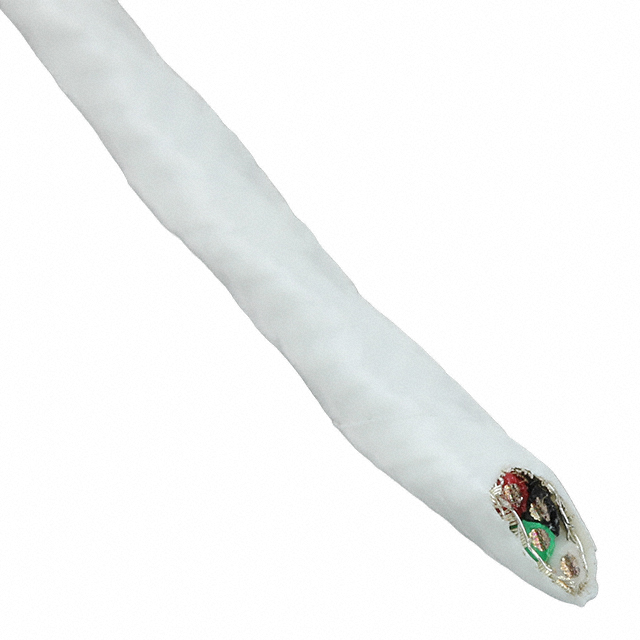

CABLE 4CON 26AWG WHT SHLD 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4CON 26AWG WHT SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	83347E 009100

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Silver Coated
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	26 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length [x]	Length [x]	Conductor Material	Conductor Strand	Shield Type	Conductor Insulation	Qualification	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Voltage	Shield Coverage
Belden Inc. 83347E 009100	-65 ░C	200 °C	Copper Silver Coated	0.279 mm	0.011 in	Multi-Conductor	30.5 m	100 ft	Copper Silver Coated	7 Strands 34 AWG	Braid	Polytetrafluoroethylene (PTFE)	MIL-W-16878/4 Type E	26 AWG	Polytetrafluoroethylene (PTFE)	4	600 V	85 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable White 26 AWG Braid 100.0' (30.5m)
