TPS7A7100EVM-718

Active

Texas Instruments

EVAL MODULE FOR TPS7A7100-718

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TPS7A7100EVM-718

Active

Texas Instruments

EVAL MODULE FOR TPS7A7100-718

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPS7A7100EVM-718	TPS7A7100 Series

Board Type	Fully Populated	Fully Populated
Channels per IC	1	1
Control Features	-	Power Good, Soft Start, Enable
Current - Output	1 A	1 A
Current - Quiescent (Iq)	-	4 mA
Mounting Type	-	Surface Mount
Number of Regulators	-	1
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Output Configuration	-	Positive
Output Type	-	Adjustable (Fixed)
Package / Case	-	16-VFQFN Exposed Pad, 20-VQFN Exposed Pad
Protection Features	-	Under Voltage Lockout (UVLO), Over Current, Over Temperature
Regulator Type	Positive Adjustable	Positive Adjustable
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	16-VQFN (3x3), 20-VQFN (5x5)
Utilized IC / Part	TPS7A7100	TPS7A7100
Voltage - Input (Max)	-	6.5 V
Voltage - Input [Max]	6.5 V	6.5 V
Voltage - Input [Min]	1.5 V	1.5 V
Voltage - Output (Max)	-	5 V
Voltage - Output (Min/Fixed)	-	0.9 V
Voltage - Output [Max]	3.3 V	3.3 V
Voltage - Output [Min]	0.9 V	0.9 V
Voltage Dropout (Max)	-	0.35 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.00

TPS7A7100 Series

1-A, ultra-low-dropout voltage regulator with low-noise & power good

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Current - Output	Voltage Dropout (Max) [Max]	Package / Case	Current - Quiescent (Iq)	Protection Features	Control Features	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Input (Max) [Max]	Output Configuration	Output Type	Supplier Device Package	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Board Type	Utilized IC / Part	Supplied Contents	Regulator Type	Channels per IC
Texas Instruments TPS7A7100RGTT The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages. The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.	Surface Mount	125 °C	-40 °C	1	1 A	0.35 V	16-VFQFN Exposed Pad	4 mA	Over Current, Over Temperature, Under Voltage Lockout (UVLO)	Enable, Power Good, Soft Start	5 V	0.9 V	6.5 V	Positive	Adjustable (Fixed)	16-VQFN (3x3)
Texas Instruments TPS7A7100RGWT The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages. The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.	Surface Mount	125 °C	-40 °C	1	1 A	0.35 V	20-VQFN Exposed Pad	4 mA	Over Current, Over Temperature, Under Voltage Lockout (UVLO)	Enable, Power Good, Soft Start	5 V	0.9 V	6.5 V	Positive	Adjustable (Fixed)	20-VQFN (5x5)
Texas Instruments TPS7A7100RGWR The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages. The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.	Surface Mount	125 °C	-40 °C	1	1 A	0.35 V	20-VQFN Exposed Pad	4 mA	Over Current, Over Temperature, Under Voltage Lockout (UVLO)	Enable, Power Good, Soft Start	5 V	0.9 V	6.5 V	Positive	Adjustable (Fixed)	20-VQFN (5x5)
Texas Instruments TPS7A7100RGTR The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages. The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.	Surface Mount	125 °C	-40 °C	1	1 A	0.35 V	16-VFQFN Exposed Pad	4 mA	Over Current, Over Temperature, Under Voltage Lockout (UVLO)	Enable, Power Good, Soft Start	5 V	0.9 V	6.5 V	Positive	Adjustable (Fixed)	16-VQFN (3x3)

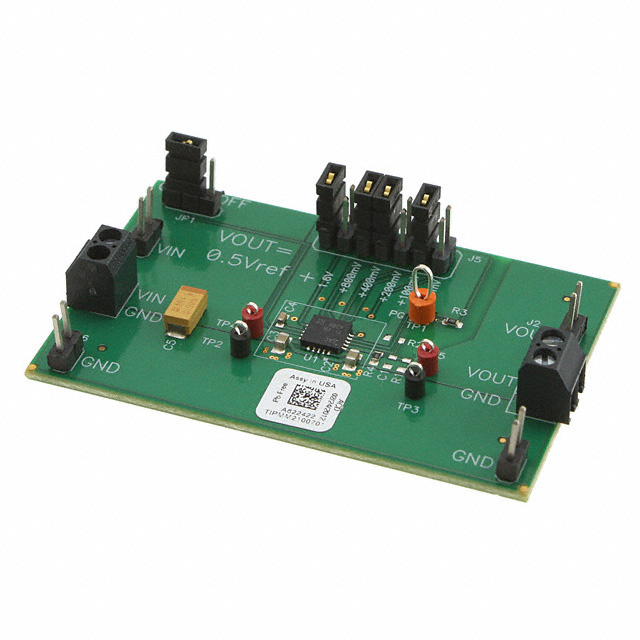

Texas Instruments TPS7A7100EVM-718 TPS7A7100 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board					1 A												1.5 V	6.5 V	3.3 V	0.9 V	Fully Populated	TPS7A7100	Board(s)	Positive Adjustable	1

Description

General part information

TPS7A7100 Series

The TPS7A7100 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (140 mV at 1 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors.

The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails.

The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.
