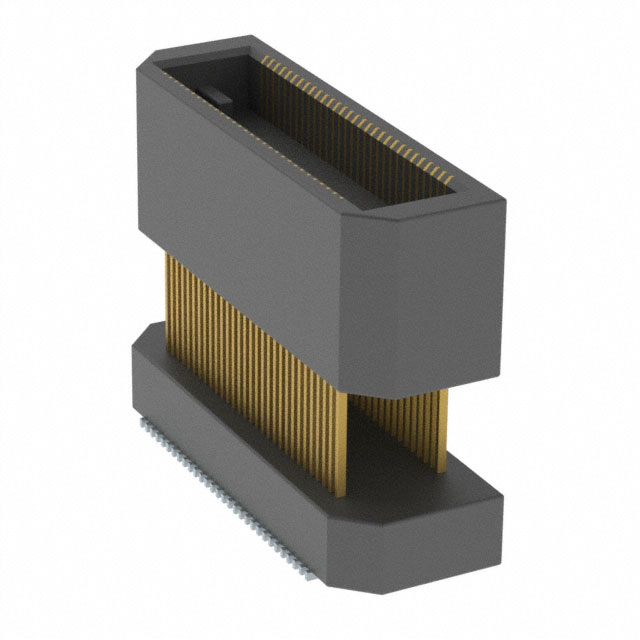

BTH-030-04-L-D

Active

Samtec Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTH,BSH Series Datasheet Datasheet

BTH-030-04-L-D

Active

Samtec Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

DocumentsBTH,BSH Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-030-04-L-D

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	0.6 in
Height Above Board	15.24 mm
Mated Stacking Heights	16 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BTH-030 Series

Part	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Features	Number of Positions	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-030-01-F-D-A-TR	5 mm	3 Áin	0.076 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in	Board Guide	60
Samtec Inc. BTH-030-04-L-D	16 mm	10 Áin	0.25 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in		60	0.6 in	15.24 mm
Samtec Inc. BTH-030-01-F-D-RA-WT		3 Áin	0.076 Ám	Surface Mount Right Angle	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in	Solder Retention	60
Samtec Inc. BTH-030-06-F-D-A	22 mm	3 Áin	0.076 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in	Board Guide	60			21.23 mm	0.836 "
Samtec Inc. BTH-030-01-L-D-TR	5 mm	10 Áin	0.25 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in		60
Samtec Inc. BTH-030-09-L-D-A	14 mm	10 Áin	0.25 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in	Board Guide	60	0.522 in	13.25 mm
Samtec Inc. BTH-030-01-L-D-K-TR	5 mm	10 Áin	0.25 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in		60
Samtec Inc. BTH-030-09-F-D-K	14 mm	3 Áin	0.076 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in		60	0.522 in	13.25 mm
Samtec Inc. BTH-030-01-L-D-A-TR	5 mm	10 Áin	0.25 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in	Board Guide	60
Samtec Inc. BTH-030-04-F-D-A-K	16 mm	3 Áin	0.076 Ám	Surface Mount	Gold	2	Header Outer Shroud Contacts	0.5 mm	0.02 in	Board Guide	60	0.6 in	15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.96

Description

General part information

BTH-030 Series

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

BTH,BSH Series Datasheet

Datasheet
