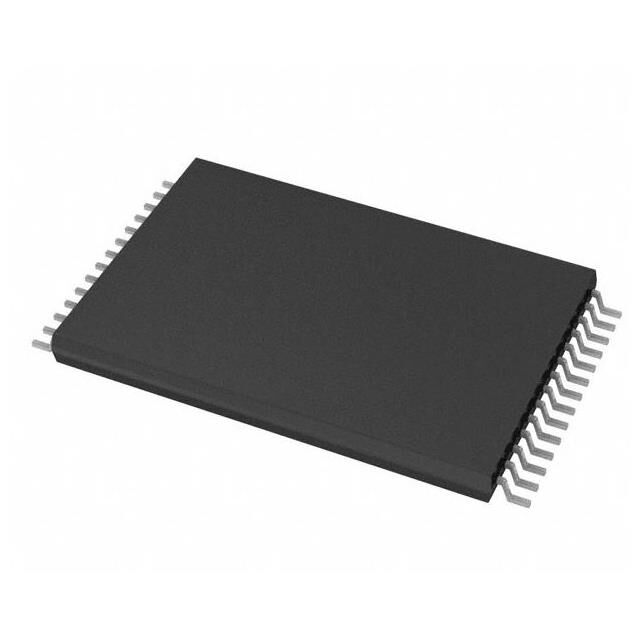

CY62256VLL-70ZRXI

Obsolete

Infineon Technologies

IC SRAM 256KBIT PAR 28TSOP I

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY62256VLL-70ZRXI

Obsolete

Infineon Technologies

IC SRAM 256KBIT PAR 28TSOP I

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY62256VLL-70ZRXI

Access Time	70 ns
Memory Format	SRAM
Memory Interface	Parallel
Memory Organization	32K x 8
Memory Size	32 KB
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	28-TSSOP
Package / Case [x]	0.465 "
Package / Case [y]	11.8 mm
Supplier Device Package	28-TSOP I
Technology	SRAM - Asynchronous
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

CY62256 Series

Part	Memory Format	Access Time	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Technology	Memory Size	Memory Interface	Memory Type	Package / Case	Package / Case [x]	Package / Case [y]	Memory Organization	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Infineon Technologies CY62256EV18LL-70SNXIT	SRAM	70 ns	85 °C	-40 °C	28-SOIC	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-SOIC	0.295 in	7.5 mm	32K x 8	1.65 V	2.25 V	Surface Mount
Infineon Technologies CY62256NLL-70ZRI	SRAM	70 ns	85 °C	-40 °C	28-TSOP I	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-TSSOP	0.465 "	11.8 mm	32K x 8	4.5 V	5.5 V	Surface Mount
Infineon Technologies CY62256NLL-55ZXAT	SRAM	55 ns	85 °C	-40 °C	28-TSOP I	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-TSSOP	0.465 "	11.8 mm	32K x 8	4.5 V	5.5 V	Surface Mount	55 ns	55 ns
Infineon Technologies CY62256VLL-70ZRXI	SRAM	70 ns	85 °C	-40 °C	28-TSOP I	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-TSSOP	0.465 "	11.8 mm	32K x 8	2.7 V	3.6 V	Surface Mount
Infineon Technologies CY62256VNLL-70SNXET	SRAM	70 ns	125 °C	-40 °C	28-SOIC	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-SOIC	0.295 in	7.5 mm	32K x 8	2.7 V	3.6 V	Surface Mount
Infineon Technologies CY62256VLL-70ZIT	SRAM	70 ns	85 °C	-40 °C	28-TSOP I	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-TSSOP	0.465 "	11.8 mm	32K x 8	2.7 V	3.6 V	Surface Mount
Infineon Technologies CY62256NLL-70SNIT	SRAM	70 ns	85 °C	-40 °C	28-SOIC	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-SOIC	0.295 in	7.5 mm	32K x 8	4.5 V	5.5 V	Surface Mount
Infineon Technologies CY62256LL-70SNXCT	SRAM	70 ns	70 °C	0 °C	28-SOIC	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-SOIC	0.295 in	7.5 mm	32K x 8	4.5 V	5.5 V	Surface Mount
Infineon Technologies CY62256VNLL-70SNXC	SRAM	70 ns	70 °C	0 °C	28-SOIC	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-SOIC	0.295 in	7.5 mm	32K x 8	2.7 V	3.6 V	Surface Mount
Infineon Technologies CY62256NLL-55SNXET	SRAM	55 ns	125 °C	-40 °C	28-SOIC	SRAM - Asynchronous	32 KB	Parallel	Volatile	28-SOIC	0.295 in	7.5 mm	32K x 8	4.5 V	5.5 V	Surface Mount	55 ns	55 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	283	$ 1.06

Description

General part information

CY62256 Series

SRAM - Asynchronous Memory IC 256Kbit Parallel 70 ns 28-TSOP I
