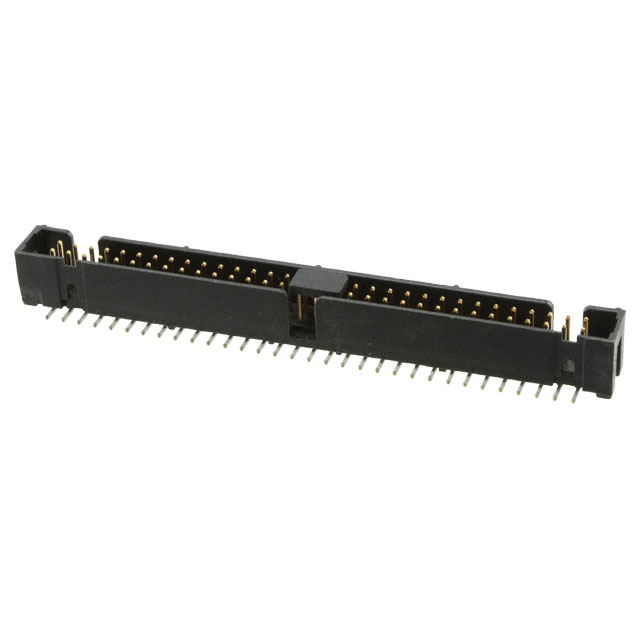

N2564-6V0C-RB-WH
Active3M
CONN HEADER SMD 64POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N2564-6V0C-RB-WH
Active3M
CONN HEADER SMD 64POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N2564-6V0C-RB-WH | N2564 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | - | 2.84 - 3.94 mm |
| Contact Length - Post | - | 0.112 - 0.155 " |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.75 A | 1.75 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Pick and Place, Keying Slot | Pick and Place, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height [z] | 9.91 mm | 9.91 mm |
| Insulation Height [z] | 0.39 in | 0.39 in |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled, Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of Positions | 64 | 64 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
N2564 Series
CONN HEADER SMD 64POS 2.54MM
| Part | Contact Finish - Mating | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Fastening Type | Insulation Material | Number of Positions Loaded | Current Rating (Amps) | Mounting Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Material Flammability Rating | Number of Rows | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Contact Material | Insulation Color | Pitch - Mating | Pitch - Mating | Style | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Shrouded - 4 Wall | 200 µin | 5.08 µm | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | All | 1.75 A | Surface Mount | 64 | 30 Áin | 0.76 Ám | Square | UL94 V-0 | 2 | Keying Slot, Pick and Place | Solder | 105 ░C | -55 °C | Tin | Copper Alloy | Black | 0.1 in | 2.54 mm | Board to Board, Cable | 9.91 mm | 0.39 in | 2.54 mm | 0.1 in | Male Pin | |||
Gold | Shrouded - 4 Wall | 200 µin | 5.08 µm | Header | Push-Pull | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | All | 1.75 A | Through Hole | 64 | 30 Áin | 0.76 Ám | Square | UL94 V-0 | 2 | Keying Slot | Solder | 105 ░C | -55 °C | Tin | Copper Alloy | Black | 0.1 in | 2.54 mm | Board to Board, Cable | 9.91 mm | 0.39 in | 2.54 mm | 0.1 in | Male Pin | 3.94 mm | 0.155 " | |
Gold | Shrouded - 4 Wall | 200 µin | 5.08 µm | Header | Push-Pull | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | All | 1.75 A | Through Hole | 64 | 30 Áin | 0.76 Ám | Square | UL94 V-0 | 2 | Keying Slot | Solder | 105 ░C | -55 °C | Tin | Copper Alloy | Black | 0.1 in | 2.54 mm | Board to Board, Cable | 9.91 mm | 0.39 in | 2.54 mm | 0.1 in | Male Pin | 2.84 mm | 0.112 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N2564 Series
Connector Header Surface Mount 64 position 0.100" (2.54mm)
