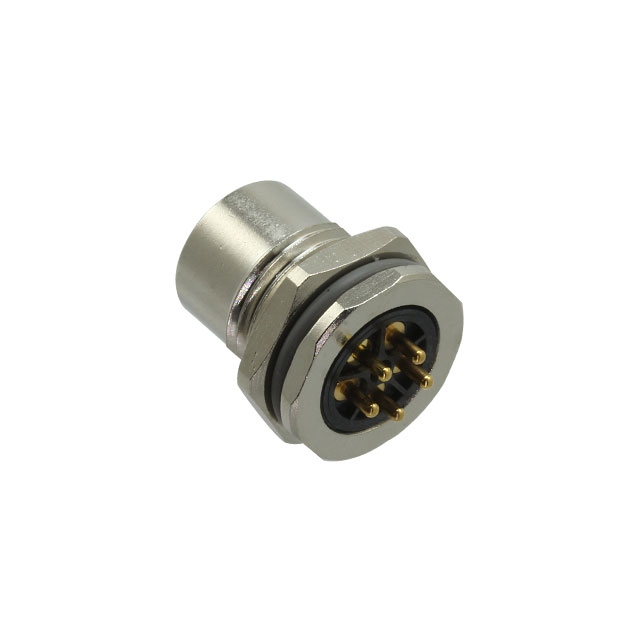

T4141L12051-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4141L12051-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4141L12051-000 | T4141L Series |
|---|---|---|
| Applications | Industrial, Lighting, Automation Control | Industrial, Lighting, Automation Control |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 16 A | 16 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 5 | 5 |
| Number of Positions | - | 1 |
| Number of Positions | - | 2 - 3 |
| Number of Positions | - | 3 - 4 |
| Number of Positions | - | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | L | L |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-4, M12-3, M12-5 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 63 V | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.41 | |
| 10 | $ 9.41 | |||
| 25 | $ 9.16 | |||
| 50 | $ 8.81 | |||
| 100 | $ 8.17 | |||
| 250 | $ 8.12 | |||
| 500 | $ 7.82 | |||
| 1000 | $ 6.97 | |||
T4141L Series
CONN RCPT FMALE 4POS GOLD SOLDER
| Part | Material Flammability Rating | Mounting Feature | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Termination | Voltage Rating | Contact Finish - Mating | Shell Size - Insert | Shielding | Mounting Type | Shell Finish | Ingress Protection | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Contact Material | Color | Insert Material | Current Rating (Amps) | Orientation | Shell Material | Number of Positions [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4141L12041-000 | UL94 V-0 | Bulkhead - Front Side Nut | Automation Control, Industrial, Lighting | 85 °C | -40 °C | Metal | Solder | 63 V | Gold | M12-4 | Unshielded | Panel Mount, Through Hole | Nickel | IP67 - Dust Tight, Waterproof | Receptacle, Female Sockets | 1 | 3 | 4 | Copper Alloy | Silver | Liquid Crystal Polymer (LCP) | 16 A | L | Copper Alloy | ||
TE Connectivity AMP Connectors T4141L12031-000 | UL94 V-0 | Bulkhead - Front Side Nut | Automation Control, Industrial, Lighting | 85 °C | -40 °C | Metal | Solder | 63 V | Gold | M12-3 | Unshielded | Panel Mount, Through Hole | Nickel | IP67 - Dust Tight, Waterproof | Receptacle, Female Sockets | 2 | 3 | Copper Alloy | Silver | Liquid Crystal Polymer (LCP) | 16 A | L | Copper Alloy | 1 | ||
TE Connectivity AMP Connectors T4141L12051-000 | UL94 V-0 | Bulkhead - Front Side Nut | Automation Control, Industrial, Lighting | 85 °C | -40 °C | Metal | Solder | 63 V | Gold | M12-5 | Unshielded | Panel Mount, Through Hole | Nickel | IP67 - Dust Tight, Waterproof | Receptacle, Female Sockets | Copper Alloy | Silver | Liquid Crystal Polymer (LCP) | 16 A | L | Copper Alloy | 5 |
Description
General part information
T4141L Series
5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Solder
