0395345723

Active

Molex

TERM BLOCK PLUG 23POS STR 5.08MM

0395345723

Active

Molex

TERM BLOCK PLUG 23POS STR 5.08MM

Description Specifications Series Pricing CAD Documents

Description

General part information

039534 Series

23 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Technical Specifications

Parameters and characteristics for this part

Specification	0395345723

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Gold
Current - UL	18 A
Features	Positions Stamped, Mating Flange
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.591 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	23
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Plug Wire Entry Angle	180 °
Positions Per Level	23
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.56 Nm
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Strip Length	6.5 mm

039534 Series

...

Part	Positions Per Level	Pitch	Features	Type	Number of Levels	Color	Plug Wire Entry Angle	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Termination Style	Number of Positions	Voltage - UL	Current - UL	Contact Mating Finish	Material Flammability Rating	Housing Material	Wire Strip Length	Insulation Height	Contact Material	Torque - Screw

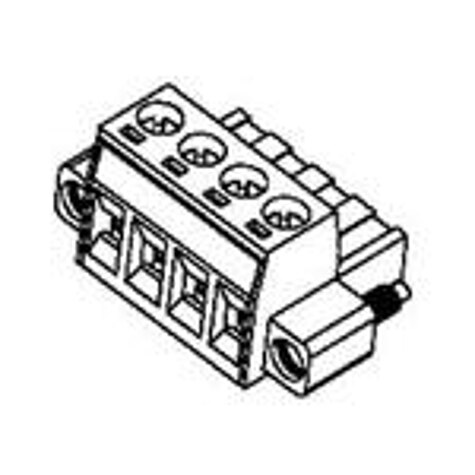

Molex 0395340008	8	5.08 mm	Mating Flange	Female Sockets Plug	1	Black	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	8	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345123	23	5.08 mm	Mating Flange Positions Stamped	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	23	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345019	19	5.08 mm	Mating Flange	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	19	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395340709	9	5.08 mm	Mating Flange Positions Stamped	Female Sockets Plug	1	Black	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	9	300 V	18 A	Gold	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345220	20	5.08 mm	Mating Flange Positions Stamped	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	20	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345208	8	5.08 mm	Mating Flange Positions Stamped	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	8	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345015	15	5.08 mm	Mating Flange	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	15	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395340503	3	5.08 mm	Mating Flange	Female Sockets Plug	1	Black	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	3	300 V	18 A	Gold	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345723	23	5.08 mm	Mating Flange Positions Stamped	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	23	300 V	18 A	Gold	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm
Molex 0395345122	22	5.08 mm	Mating Flange Positions Stamped	Female Sockets Plug	1	Green	180 °	Free Hanging (In-Line)	-40 °C	115 °C	30 AWG	12 AWG	Screw - Rising Cage Clamp	22	300 V	18 A	Tin	UL94 V-0	Nylon 6/6 PA66 Polyamide	6.5 mm	0.591 in	Phosphor Bronze	0.56 Nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0395345723 | Datasheet
