ActiveEDAC Inc.

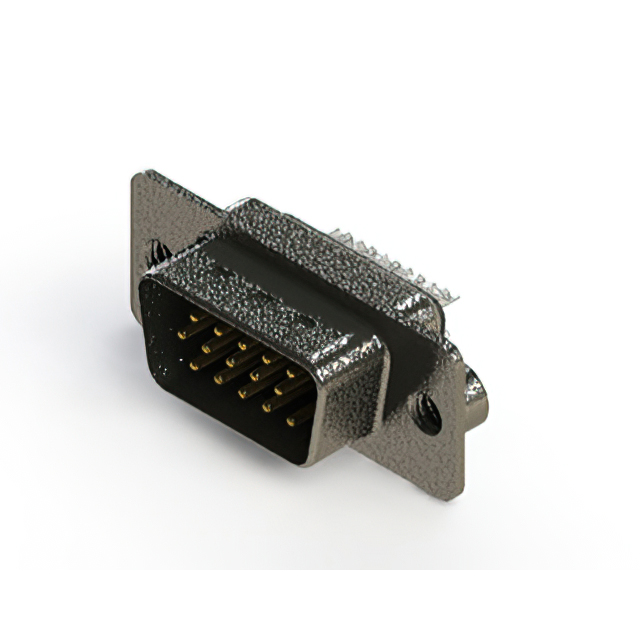

CONN D-SUB HD PLUG 15P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
637-015-332-262
ActiveEDAC Inc.
CONN D-SUB HD PLUG 15P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 637-015-332-262 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
637-015 Series
...
| Part | Flange Feature | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Shell Material, Finish | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Mounting Type | Contact Type | Material Flammability Rating | Number of Rows | Color | Connector Type | Features | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 | 3 A | DE E | 1 | High Density | Flash | Nickel Plated Steel | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Free Hanging (In-Line) | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Board Lock Grounding Indents Shielded | Gold | 15 | |||
EDAC Inc. | 4-40 | 3 A | DE E | 1 | High Density | Nickel Plated Steel | D-Sub High Density | -55 °C | 85 °C | Brass | Polyester Thermoplastic | Panel Mount Through Hole | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Board Lock Grounding Indents Shielded | Gold | 15 | 0.76 Ám | 30 Áin | Solder | |
EDAC Inc. | Housing/Shell (Unthreaded) | 3 A | DE E | 1 | High Density | Nickel Plated Steel | D-Sub High Density | -55 °C | 85 °C | Brass | Polyester Thermoplastic | Panel Mount Through Hole | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 | 0.76 Ám | 30 Áin | Solder | |
EDAC Inc. | Housing/Shell (4-40) | 3 A | DE E | 1 | High Density | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Free Hanging (In-Line) | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 | 0.38 µm | 15 µin | |||
EDAC Inc. | 4-40 Board Side | 3 A | DE E | 1 | High Density | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Panel Mount Through Hole | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 | 0.38 µm | 15 µin | Solder | ||
EDAC Inc. | 4-40 | 3 A | DE E | 1 | High Density | Flash | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Free Hanging (In-Line) | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 | ||||
EDAC Inc. | 4-40 Board Side | 3 A | DE E | 1 | High Density | Flash | Nickel Plated Steel | D-Sub High Density | -55 °C | 85 °C | Brass | Polyester Thermoplastic | Free Hanging (In-Line) | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 | |||
EDAC Inc. | Female Screwlock (4-40) Mating Side | 3 A | DE E | 1 | High Density | Flash | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Panel Mount Through Hole | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 | Solder | |||
EDAC Inc. | Housing/Shell (4-40) | 3 A | DE E | 1 | High Density | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Panel Mount Through Hole | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Board Lock Grounding Indents Shielded | Gold | 15 | 0.38 µm | 15 µin | Solder | ||
EDAC Inc. | Housing/Shell (Unthreaded) | 3 A | DE E | 1 | High Density | Flash | D-Sub High Density | -55 °C | 125 °C | Brass | Polyester Thermoplastic | Free Hanging (In-Line) | Signal | UL94 V-0 | 3 | Black | Male Pins Plug | Grounding Indents Shielded | Gold | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 4.11 | |
Description
General part information
637-015 Series
15 Position D-Sub, High Density Plug, Male Pins Connector
