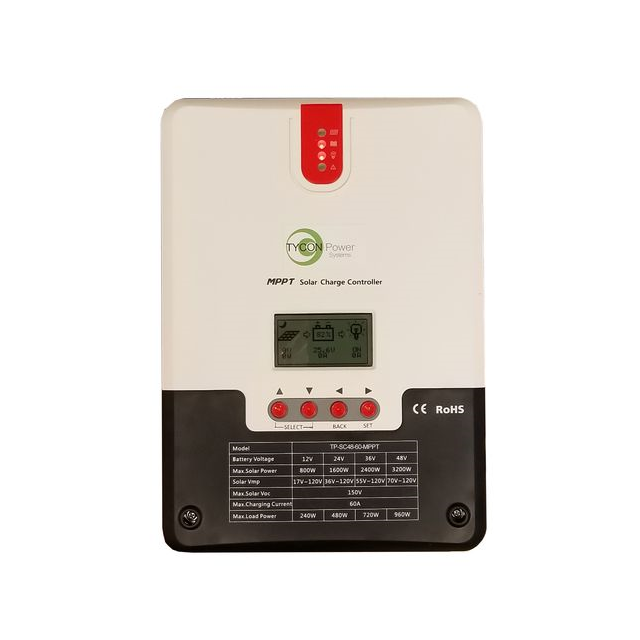

TP-SC48-60-MPPT

Obsolete

Tycon Systems Inc.

BATT CHARGER SOLAR 60A

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

BATT CHARGER SOLAR 60A

Technical Specifications

Parameters and characteristics for this part

Specification	TP-SC48-60-MPPT

Approval Agency	CE
Battery Cell Size	48V, 24V, 36V, 12V
Battery Chemistry	Lithium-Ion, Lead Acid
Charge Current - Max [Max]	60 A
Features	Multiple Charge Modes, LED Indicator
Mounting Type	Desktop
Number of Cells	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-35 °C
Power - Max [Max]	2400 W, 3200 W, 800 W, 1600 W
Size / Dimension [x]	279.4 mm
Size / Dimension [x]	11 in
Size / Dimension [y]	203.2 mm
Size / Dimension [y]	8 in
Size / Dimension [z]	93.98 mm
Size / Dimension [z]	3.7 in
Termination Style	Screw Terminal
Type	Solar Charger
Voltage - Input	150 V

BATT CHARGER SOLAR 60A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Battery Cell Size	Approval Agency	Battery Chemistry	Termination Style	Number of Cells	Features	Charge Current - Max [Max]	Power - Max [Max]	Type	Voltage - Input	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type
Tycon Systems Inc. TP-SC48-60-MPPT	55 °C	-35 °C	12V, 24V, 36V, 48V	CE	Lead Acid, Lithium-Ion	Screw Terminal	1	LED Indicator, Multiple Charge Modes	60 A	800 W, 1600 W, 2400 W, 3200 W	Solar Charger	150 V	203.2 mm	8 in	279.4 mm	93.98 mm	3.7 in	11 in	Desktop

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solar Charger Battery Charger 60A 12V/24V/36V/48V

Technical documentation and resources

No documents available
