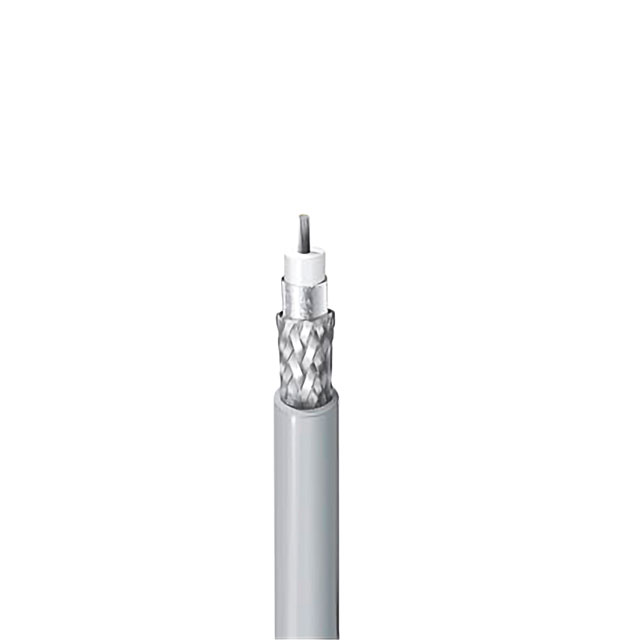

89907 E4X2500

Active

Belden Inc.

COAX 20AWG 50 OHM

Search across all available documentation for this part.

Active

Belden Inc.

COAX 20AWG 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	89907 E4X2500

Cable Group	RG-58
Cable Type	Thinnet - Plenum
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	32 AWG
Dielectric Diameter [diameter]	0.095 in
Dielectric Diameter [diameter]	2.41 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	4.06 mm
Jacket (Insulation) Diameter [diameter]	0.16 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Gray
Length	2500 ft
Length	762 m
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Shield Coverage	93 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	80
Wire Gauge	20 AWG

Part	Cable Type	Jacket Color	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Group	Wire Gauge	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Length	Length	Jacket (Insulation) Material	Conductor Material	Shield Coverage	Shield Type	VoP, Velocity of Propagation
Belden Inc. 89907 E4X2500	Thinnet - Plenum	Gray	Aluminum Copper Tinned	4.06 mm	0.16 in	19 Strands	32 AWG	RG-58	20 AWG	50 Ohms	0.095 in	2.41 mm	150 °C	-20 C	Foam Fluorinated Ethylene Propylene (FFEP)	2500 ft	762 m	Polyvinylidene Fluoride (PVDF)	Copper Tinned	93 % 100 %	Braid Foil	80
Belden Inc. 89907 E4X500	Thinnet - Plenum	Gray	Aluminum Copper Tinned	4.06 mm	0.16 in	19 Strands	32 AWG	RG-58A	20 AWG	50 Ohms	0.095 in	2.41 mm	150 °C	-20 C	Foam Fluorinated Ethylene Propylene (FFEP)	6000 in	152.4 m	Polyvinylidene Fluoride (PVDF)	Copper Tinned	93 % 100 %	Braid Foil	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 2.69

General part information

Thinnet - Plenum Cable 20 AWG RG-58 2500.0' (762.00m) 50 Ohms
