Q-2I0140005.25M

Active

Amphenol Custom Cable

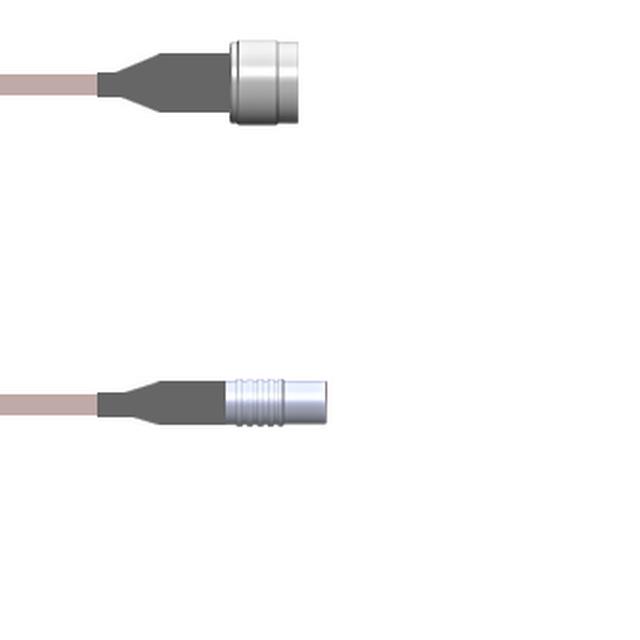

CBL ASSY MCX-NTYPE JCK-PL 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0140005.25M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JCK-PL 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0140005.25M

1st Connector	MCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2I0140 Series

Part	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	Length	Length	Length	Features	2nd Connector	Frequency - Max [Max]	Style	1st Connector	Overall Impedance	1st Contact Gender	1st Connector Mounting Type	Color	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2I0140003001M	Male	RG-174	Free Hanging (In-Line)	1 m	3.3 ft	39.4 in	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I0140005003M	Male	RG-316	Free Hanging (In-Line)	3 m	9.8 '	118.1 in	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2I0140005.25M	Male	RG-316	Free Hanging (In-Line)				Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Copper	9.843 "	250 mm
Amphenol Custom Cable Q-2I0140003084i	Male	RG-174	Free Hanging (In-Line)	2.1 m	7 ft	84 in	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I0140003003M	Male	RG-174	Free Hanging (In-Line)	3 m	9.8 '	118.1 in	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I0140003036i	Male	RG-174	Free Hanging (In-Line)	91.44 cm		36 in	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I0140003072i	Male	RG-174	Free Hanging (In-Line)	1.8 m	6 ft	72 in	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I01400030.5M	Male	RG-174	Free Hanging (In-Line)	50 cm		19.69 "	Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I0140003.25M	Male	RG-174	Free Hanging (In-Line)				Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black	9.843 "	250 mm
Amphenol Custom Cable Q-2I0140003018i	Male	RG-174	Free Hanging (In-Line)				Shielded	N-Type Plug	6000 MHz	MCX to N-Type	MCX Jack	50 Ohms	Female	Free Hanging (In-Line)	Black		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 130.37
		25	$ 127.86
		50	$ 125.35
		100	$ 122.83
		250	$ 120.32

Description

General part information

Q-2I0140 Series

Cable Assembly Coaxial MCX to N-Type RG-316 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
