General part information

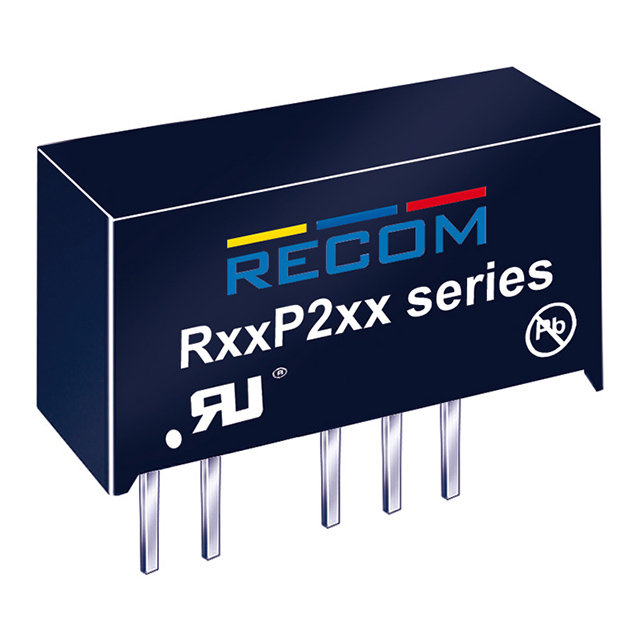

Isolated DC/DC Converters - Through Hole 2W DC/DC 5.2kV UNREG 12Vin 9Vout
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | R05P23.3S/P | R05P23.3 Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) | - | 300 mA |
| Current - Output (Max) [Max] | 600 mA | 600 mA |
| Efficiency | 70 % | 70 - 80 % |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 - 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads | 7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 0.77 in | 0.77 in |
| Size / Dimension [x] | 19.7 mm | 19.7 mm |
| Size / Dimension [y] | 0.39 " | 0.39 " |
| Size / Dimension [y] | 9.8 mm | 9.8 mm |
| Size / Dimension [z] | 12.5 mm | 12.5 mm |
| Size / Dimension [z] | 0.49 in | 0.49 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 6.4 kV | 6.4 - 8 kV |
| Voltage - Output 1 | 3.3 V | 3.3 V |
| Voltage - Output 2 | - | -3.3 V |
Isolated DC/DC Converters - Through Hole 2W DC/DC 5.2kV UNREG 12Vin 9Vout
| Part | Package / Case | Applications | Voltage - Input (Min) [Min] | Power (Watts) | Voltage - Isolation | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Efficiency | Features | Voltage - Output 1 | Voltage - Output 2 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R05P23.3S/P/X2/R6.4 | 7-SIP Module, 4 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 6.4 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 600 mA | 1 | 5.5 V | 78 % | SCP | 3.3 V | ||||||||
RECOM Power R05P23.3D/R6.4 | 7-SIP Module, 5 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 6.4 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 2 | 5.5 V | 80 % | 3.3 V | -3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | 300 mA | ||
RECOM Power R05P23.3D/P/R8 | 7-SIP Module, 5 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 8 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 2 | 5.5 V | 80 % | SCP | 3.3 V | -3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | 300 mA | |
RECOM Power R05P23.3S/R8 | 7-SIP Module, 4 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 8 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 600 mA | 1 | 5.5 V | 78 % | 3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | |||
RECOM Power R05P23.3S/R6.4 | 7-SIP Module, 4 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 6.4 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 600 mA | 1 | 5.5 V | 78 % | 3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | |||
RECOM Power R05P23.3S/P/X2/R8 | 7-SIP Module, 4 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 8 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 600 mA | 1 | 5.5 V | 78 % | SCP | 3.3 V | ||||||||
RECOM Power R05P23.3S/P | 7-SIP Module, 4 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 6.4 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 600 mA | 1 | 5.5 V | 70 % | SCP | 3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | ||
RECOM Power R05P23.3D | 7-SIP Module, 5 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 6.4 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 2 | 5.5 V | 70 % | 3.3 V | -3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | 300 mA | ||
RECOM Power R05P23.3D/R8 | 7-SIP Module, 5 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 8 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 2 | 5.5 V | 80 % | 3.3 V | -3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm | 300 mA | ||
RECOM Power R05P23.3S/X2/R6.4 | 7-SIP Module, 4 Leads | ITE (Commercial), Medical | 4.5 V | 2 W | 6.4 kV | Isolated Module | Through Hole | 85 °C | -40 °C | 600 mA | 1 | 5.5 V | 78 % | 3.3 V | 0.77 in | 0.39 " | 12.5 mm | 0.49 in | 19.7 mm | 9.8 mm |
