N3764-5302RB

Active

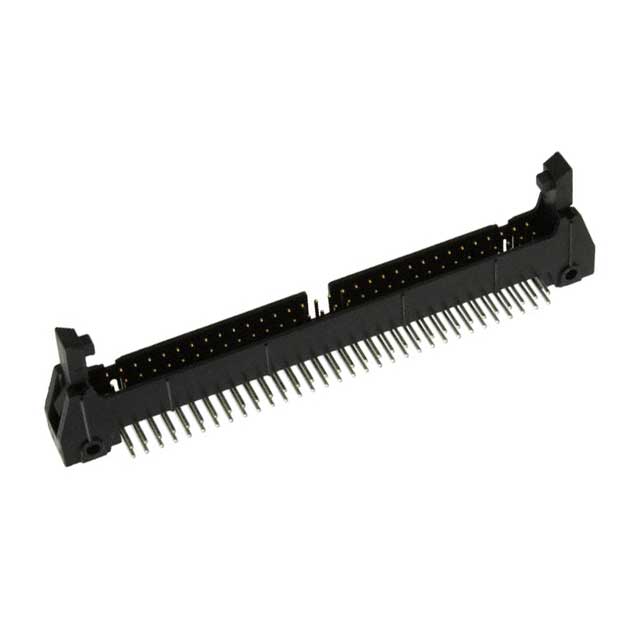

3M FOUR-WALL HEADER, 3000 SERIES, N3764-5302RB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3764-5302RB

Active

3M FOUR-WALL HEADER, 3000 SERIES, N3764-5302RB

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.46
		10	$ 8.52
		100	$ 7.61
		500	$ 6.38
		1000	$ 5.64

Description

General part information

N3764 Series

Connector Header Through Hole, Right Angle 64 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3764-5302RB	N3764 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 4.45 mm
Contact Length - Post	0.112 in	0.112 - 0.175 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull
Insulation Color	Black	Black, Beige
Insulation Height	0.34 in	0.311 - 0.68 in
Insulation Height	8.64 mm	7.9 - 17.27 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	64	64
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 3 Wall, Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Press-Fit

N3764 Series

CONN HEADER VERT 64POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Style	Contact Shape	Insulation Color	Contact Type	Contact Finish - Post	Shrouding	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Material	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating [x]	Termination	Fastening Type	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]
3M N3764-2202RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 3 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-2302RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 3 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Long	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-5203RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	3.94 mm	0.155 "	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	8.64 mm	0.34 in	2.54 mm	0.1 in
3M N3764-5302RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Long	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	8.64 mm	0.34 in	2.54 mm	0.1 in
3M N3764-6002	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Beige	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Push-Pull	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-5202RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	8.64 mm	0.34 in	2.54 mm	0.1 in
3M N3764-1003RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 3 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	3.94 mm	0.155 "	6.1 mm	0.24 in	Solder	Push-Pull	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	7.9 mm	0.311 in	2.54 mm	0.1 in
3M N3764-630T02RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole	4.45 mm	0.175 in	6.1 mm	0.24 in	Press-Fit, Solder	Latch Lock/Eject Hooks, Long	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	300 µin	7.62 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in	0.715 "	18.16 mm
3M N3764-6502	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Beige	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-6203RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall	0.695 in	17.65 mm	1.75 A	Copper Alloy	Through Hole	3.94 mm	0.155 "	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
