1410971-3

Active

TE Connectivity AMP Connectors

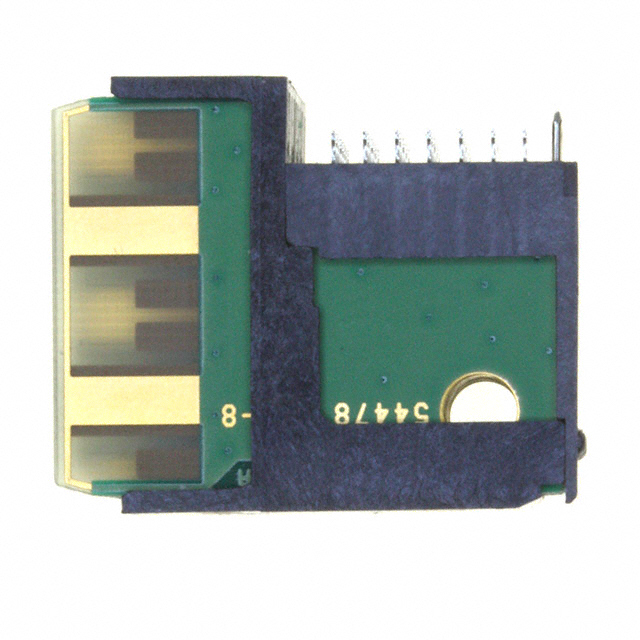

CONN PLUG VITA46 56POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA46 56POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410971-3

Color	Black
Connector Style	VITA 46, Half, Left End
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical [custom]	20
Contact Layout, Typical [custom]	4
Contact Layout, Typical [custom]	16
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	8
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

CONN PLUG VITA46 56POS EDGE MNT

Part	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Termination	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Usage	Connector Type	Material Flammability Rating	Number of Rows	Pitch [x]	Pitch [x]	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Number of Positions	Voltage Rating	Number of Columns
TE Connectivity AMP Connectors 1410971-3	20	4	16	Press-Fit	Board Edge, Right Angle, Through Hole	Black	50 µin	1.27 µm	Gold	Board Guide	Daughtercard	Plug, Male Blades	UL94 V-0	7	0.071 in	1.8 mm	Half, Left End, VITA 46	105 ░C	-55 °C	All	56	50 V	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Half, Left End
