Q-1W03U0008002M

Active

Amphenol Custom Cable

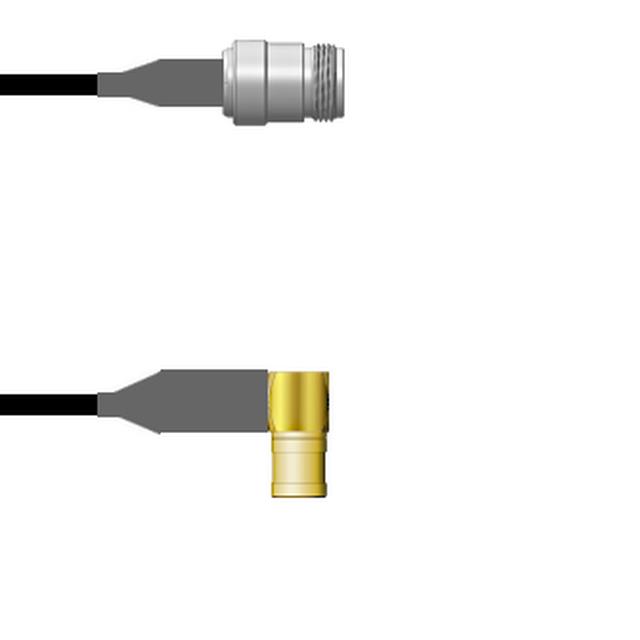

CBL ASSY SMB-NTYPE PLG-JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W03U0008002M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLG-JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W03U0008002M

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1W03U0 Series

Part	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Connector	Style	1st Connector Mounting Type	Overall Impedance	1st Contact Gender	Features	Cable Type	1st Connector	2nd Contact Gender	Color	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1W03U00080.5M	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	50 cm	19.69 "
Amphenol Custom Cable Q-1W03U0008002M	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	2 m	78.7 in	6.6 ft
Amphenol Custom Cable Q-1W03U0008003M	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-1W03U0008009i	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	228.6 mm	9 "
Amphenol Custom Cable Q-1W03U0008036i	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	91.44 cm	36 in
Amphenol Custom Cable Q-1W03U0008072i	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	1.8 m	72 in	6 ft
Amphenol Custom Cable Q-1W03U00082.5M	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	2.5 m	98.4 in	8.2 '
Amphenol Custom Cable Q-1W03U0008024i	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	609.6 mm	24 "
Amphenol Custom Cable Q-1W03U0008.25M	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black				9.843 "	250 mm
Amphenol Custom Cable Q-1W03U0008006i	Free Hanging (In-Line)	4 GHz	N-Type Jack	SMB to N-Type	Free Hanging (In-Line)	50 Ohms	Female	Shielded	RG-58	Right Angle SMB Plug	Female	Black	152.4 mm	6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.11
		25	$ 80.21
		50	$ 74.31
		100	$ 69.25
		250	$ 65.03

Description

General part information

Q-1W03U0 Series

Cable Assembly Coaxial SMB to N-Type RG-58 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
