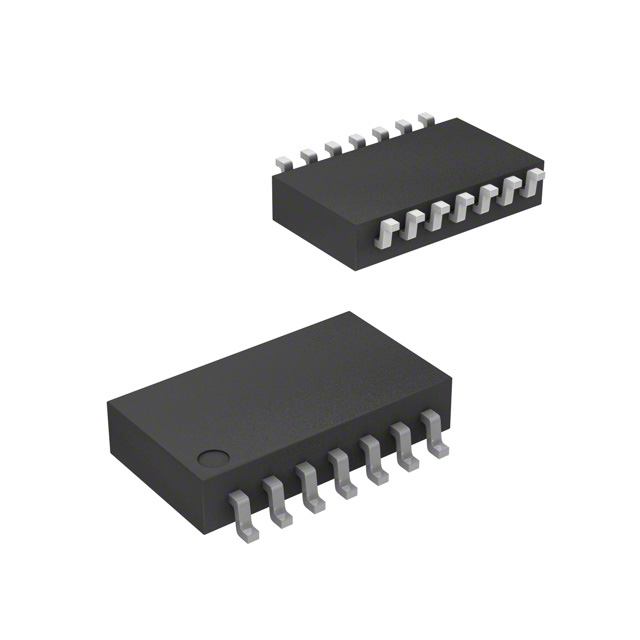

4814P-2-820

Active

Bourns Inc.

RES ARRAY 13 RES 82 OHM 14SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4814P-2-820

Active

Bourns Inc.

RES ARRAY 13 RES 82 OHM 14SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4814P-2-820

Circuit Type	Bussed
Grade	Automotive
Height - Seated (Max) [Max] [z]	0.094 "
Height - Seated (Max) [Max] [z]	2.4 mm
Mounting Type	Surface Mount
Number of Pins	14 Pins
Number of Resistors	13
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	14-SOIC
Package / Case [custom]	0.22 in
Package / Case [custom]	5.59 mm
Power Per Element	80 mW
Qualification	AEC-Q200
Resistance (Ohms)	82 Ohms
Size / Dimension [x]	9.91 mm
Size / Dimension [x]	0.39 "
Size / Dimension [y]	5.59 mm
Size / Dimension [y]	0.22 "
Supplier Device Package	14-SOM
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4814P Series

...

Part	Resistance (Ohms)	Number of Pins	Number of Resistors	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Temperature Coefficient	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Qualification	Power Per Element	Tolerance	Package / Case [custom]	Package / Case [custom]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Grade	Resistance (Ohms)
Bourns Inc. 4814P-T01-330	33 Ohms	14 Pins	7	Isolated	-55 °C	125 °C	Surface Mount	250 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	160 mW	1 Ohm	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-2-332	3.3 kOhms	14 Pins	13	Bussed	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	80 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-T02-152	1.5 kOhms	14 Pins	13	Bussed	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	80 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-T02-203LF	20 kOhms	14 Pins	13	Bussed	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	80 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-T01-272LF	2.7 kOhms	14 Pins	7	Isolated	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	160 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-1-472LF		14 Pins	7	Isolated	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	160 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive	4.7k
Bourns Inc. 4814P-T01-181LF	180 Ohms	14 Pins	7	Isolated	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	160 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-1-471	470 Ohms	14 Pins	7	Isolated	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	160 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-T01-102LF	1 kOhms	14 Pins	7	Isolated	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	160 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive
Bourns Inc. 4814P-2-820	82 Ohms	14 Pins	13	Bussed	-55 °C	125 °C	Surface Mount	100 ppm/°C	14-SOM	0.094 "	2.4 mm	AEC-Q200	80 mW	2 %	0.22 in	5.59 mm	14-SOIC	5.59 mm	0.22 "	9.91 mm	0.39 "	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.59

Description

General part information

4814P Series

82 Ohm ±2% 80mW Power Per Element Bussed 13 Resistor Network/Array ±100ppm/°C 14-SOIC (0.220", 5.59mm Width)
