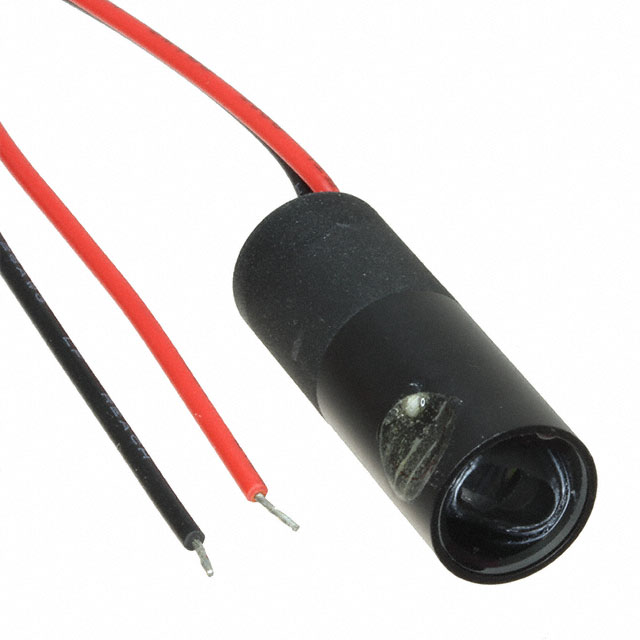

VLM-650-30 LPT10 (90O)
ActiveQuarton Inc.
LASER DIODE 650NM 5MW 10MM DIA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLM-650-30 LPT10 (90O)
ActiveQuarton Inc.
LASER DIODE 650NM 5MW 10MM DIA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VLM-650-30 LPT10 (90O) | VLM-650 Series |
|---|---|---|
| - | - | |
| Current Rating (Amps) | - | 25 - 100 mA |
| Package / Case | Cylinder | Cylinder, Module |
| Package / Case [diameter] | 10 mm | 4 - 12.5 mm |
| Power (Watts) | 5 mW | 0.02 - 12 mW |
| Power (Watts) | - | 0.3 - 0.5 mW |
| Power (Watts) | - | 0.7 - 0.9 mW |
| Voltage - Input | 5 VDC | 4 - 5 VDC |
| Voltage - Input | - | 2.6 - 5 V |
| Voltage - Input | - | 5 - 12 V |
| Wavelength | 650 nm | 650 - 655 nm |
VLM-650 Series
LASER DIODE 650NM 3MW 10.5MM DIA
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Package / Case | Package / Case [diameter] | Current Rating (Amps) | Wavelength | Power (Watts) | Power (Watts) [Min] | Power (Watts) [Max] | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|
Quarton Inc. VLM-650-02 LPT | 2.6 V | 5 V | Cylinder | 10.5 mm | 40 mA | 650 nm | 3 mW | |||
Quarton Inc. VLM-650-02G LPA20 | ||||||||||
Quarton Inc. VLM-650-07 LPA | 5 V | 12 V | Cylinder | 12.5 mm | 35 mA | 650 nm | 3 mW | |||
Quarton Inc. VLM-650-21 LPT | 3 V | 5 V | Cylinder | 4 mm | 25 mA | 650 nm | 0.5 mW | 0.9 mW | ||
Quarton Inc. VLM-650-01-LPAC | 2.6 V | 5 V | 40 mA | 650 nm | 3 mW | |||||
Quarton Inc. VLM-650-30 LPT10 (90O) | Cylinder | 10 mm | 650 nm | 5 mW | 5 VDC | |||||
Quarton Inc. VLM-650-30 LPT10 (60O) | Cylinder | 10 mm | 650 nm | 5 mW | 5 VDC | |||||
Quarton Inc. VLM-650-29 LPT | 2.6 V | 5 V | Cylinder | 9 mm | 35 mA | 650 nm | 2 mW | |||
Quarton Inc. VLM-650-01-SPA | 2.6 V | 5 V | 40 mA | 650 nm | 3 mW | |||||
Quarton Inc. VLM-650-03 LPA | 2.6 V | 5 V | 40 mA | 650 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
VLM-650 Series
Laser Diode 650nm 5mW 5V Cylinder (10mm Dia)
Documents
Technical documentation and resources
