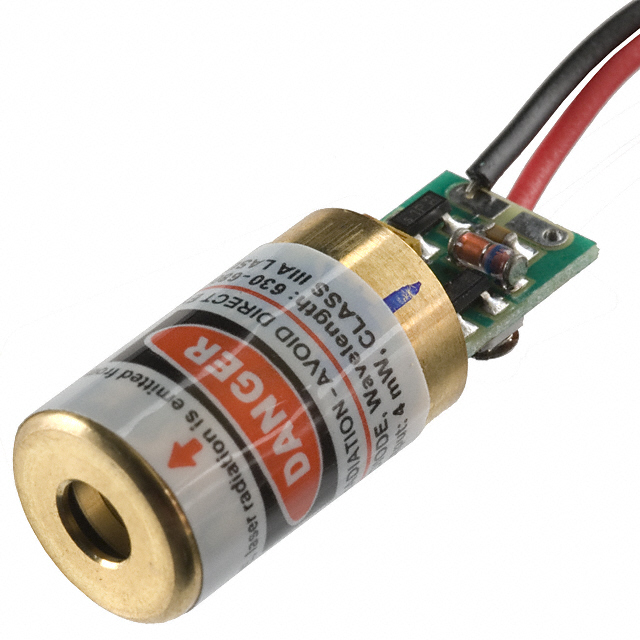

VLM-650-02 LPT

Active

Quarton Inc.

LASER DIODE 650NM 3MW 10.5MM DIA

Search across all available documentation for this part.

Active

Quarton Inc.

LASER DIODE 650NM 3MW 10.5MM DIA

Technical Specifications

Parameters and characteristics commom to parts in this series

LASER DIODE 650NM 3MW 10.5MM DIA

Part	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Package / Case [diameter]	Current Rating (Amps)	Wavelength	Power (Watts)	Power (Watts) [Min]	Power (Watts) [Max]	Voltage - Input
Quarton Inc. VLM-650-02 LPT	2.6 V	5 V	Cylinder	10.5 mm	40 mA	650 nm	3 mW
Quarton Inc. VLM-650-02G LPA20
Quarton Inc. VLM-650-07 LPA	5 V	12 V	Cylinder	12.5 mm	35 mA	650 nm	3 mW
Quarton Inc. VLM-650-21 LPT	3 V	5 V	Cylinder	4 mm	25 mA	650 nm		0.5 mW	0.9 mW
Quarton Inc. VLM-650-01-LPAC	2.6 V	5 V			40 mA	650 nm	3 mW
Quarton Inc. VLM-650-30 LPT10 (90O)			Cylinder	10 mm		650 nm	5 mW			5 VDC
Quarton Inc. VLM-650-30 LPT10 (60O)			Cylinder	10 mm		650 nm	5 mW			5 VDC
Quarton Inc. VLM-650-29 LPT	2.6 V	5 V	Cylinder	9 mm	35 mA	650 nm	2 mW
Quarton Inc. VLM-650-01-SPA	2.6 V	5 V			40 mA	650 nm	3 mW
Quarton Inc. VLM-650-03 LPA	2.6 V	5 V			40 mA	650 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Laser Diode 650nm 3mW 2.6V ~ 5V 40mA Cylinder (10.5mm Dia)
