165X13549X

Active

Amphenol CONEC

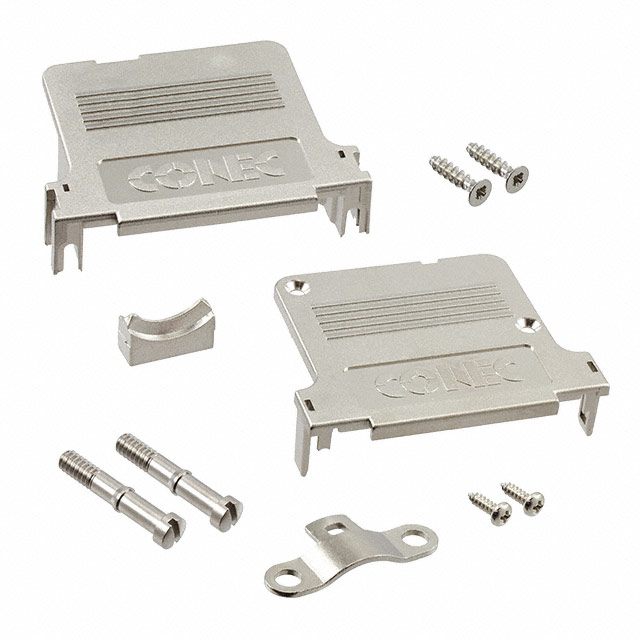

CONN BACKSHELL 37POS 45DEG SHLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 37POS 45DEG SHLD

Technical Specifications

Parameters and characteristics for this part

Part	Cable Exit	Compatible Shell Size	Cable Type	Features	Number of Positions	Compatible D-Sub Size	Shielding	Primary Material	Material	Accessory Type	Hardware	Color	Plating
Amphenol CONEC 165X13549X	45 °	C	Round	Mating Screws 4-40	37	37pos HD62pos	Shielded	Plastic	Metallized Plastic	One Piece Backshell	Assembly Hardware
Amphenol CONEC 165X13539X	45 °	B	Round	Mating Screws 4-40		25pos HD44pos	Shielded	Plastic	Metallized Plastic	Two Piece Backshell		Silver
Amphenol CONEC 165X13559X	45 °	D	Round	Mating Screws 4-40	50	50pos HD78pos	Shielded	Plastic	Metallized Plastic	Two Piece Backshell	Assembly Hardware Strain Relief
Amphenol CONEC 165X13509X	180 °	D	Round	Mating Screws 4-40	50	50pos HD78pos	Shielded	Plastic	Metallized Plastic	Two Piece Backshell	Assembly Hardware Strain Relief
Amphenol CONEC 165X13529X	45 °	A	Round	IP20 Mating Screws 4-40	15	15pos HD26pos	Shielded	Plastic	Acrylonitrile Butadiene Styrene (ABS) Metallized	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Black	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position One Piece Backshell Connector 45° Shielded
