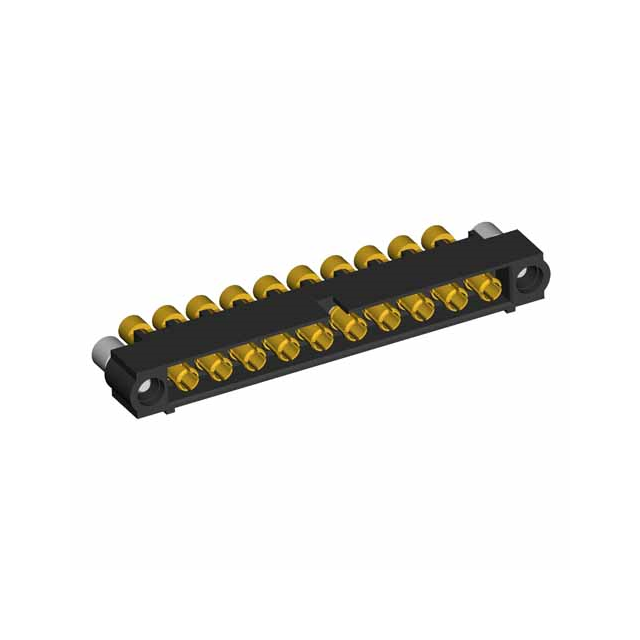

M80-5000000MB-03-336-00-000

Active

Harwin Inc.

DATAMATE MIX-TEK MALE CRIMP CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001 M80-263F102-00-00 +2

M80-5000000MB-03-336-00-000

Active

Harwin Inc.

DATAMATE MIX-TEK MALE CRIMP CONN

Deep-Dive with AI

DocumentsM80-0110001 M80-263F102-00-00 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5000000MB-03-336-00-000

Cable Termination	Crimp
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Type	Male Pin, Coaxial
Features	Polarizing Key, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Pitch [x]	4 mm
Pitch [x]	0.157 in
Wire Type	Coaxial

M80-500 Series

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Shape	Features	Contact Finish - Post	Contact Material	Mounting Type	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish - Mating	Material Flammability Rating	Contact Type	Insulation Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Color	Contact Length - Post	Contact Length - Post	Wire Type	Cable Termination	Contact Finish	Pitch [x]	Pitch [x]	Color	Mated Stacking Heights	Contact Finish Thickness - Post	Fastening Type
Harwin Inc. M80-5004405	Solder	-55 °C	125 °C	800 VAC	Circular	Keying Slot Mating Flange	Gold	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	44	29.5 Áin	0.75 Ám	Header	29.5 µin	0.75 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.13 in	3.3 mm
Harwin Inc. M80-5000000MN-02-334-00-000						Jackscrews Polarizing Key							1			Coaxial Male Pin		2			Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black
Harwin Inc. M80-5001042	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	10	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-5000000MB-03-336-00-000						Jackscrews Polarizing Key			Free Hanging (In-Line)				1			Coaxial Male Pin					Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black
Harwin Inc. M80-5001022	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin-Lead	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	10	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-500000000-08-315-00-000						Mating Flange Polarizing Key			Free Hanging (In-Line)				1			Coaxial Male Pin		8			Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black			Push-Pull
Harwin Inc. M80-5004442	Solder	-55 °C	125 °C	800 VAC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	44	29.5 Áin	0.75 Ám	Header		0.3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.13 in	3.3 mm							7.3 mm 7.8 mm	12 µin
Harwin Inc. M80-5000842	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	8	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-5004242	Solder	-55 °C	125 °C	120 VDC	Circular	Keying Slot Mating Flange	Tin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	0.079 in	2 mm	2	Gold	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	42	29.5 Áin	0.75 Ám	Header		3 µm	Board to Board Cable	0.079 in	2 mm	All	5.6 mm	0.22 in	2.2 A	Black	0.128 "	3.25 mm							7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	118.1 µin
Harwin Inc. M80-5000000M1-12-315-00-000						Mating Flange Polarizing Key			Free Hanging (In-Line)				1			Coaxial Male Pin		12			Plug													Coaxial	Crimp	Gold	4 mm	0.157 in	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-500 Series

3 Position Rectangular Plug Connector Crimp Gold

Documents

Technical documentation and resources

M80-0110001

M80-263F102-00-00

M80, M83 Series Spec Sheet

Datasheet
