Q-2C0110003084i

Active

Amphenol Custom Cable

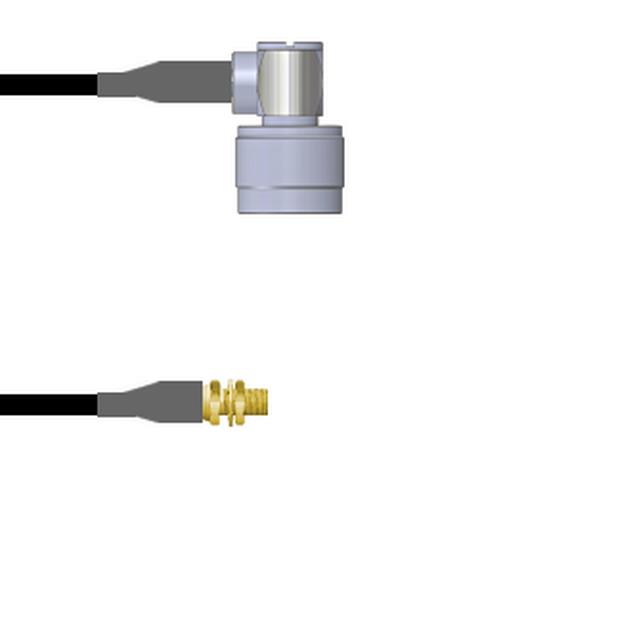

CBL ASSY MCX-NTYPE JACK-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C0110003084i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JACK-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C0110003084i

1st Connector	MCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2C0110 Series

Part	Cable Type	1st Connector Mounting Feature	1st Connector	Overall Impedance	2nd Connector	Features	Color	1st Contact Gender	Frequency - Max [Max]	Length [x]	Length [x]	1st Connector Mounting Type	Style	2nd Connector Mounting Type	2nd Contact Gender	Length	Length	Length
Amphenol Custom Cable Q-2C0110005018i	RG-316	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Copper	Female	6000 MHz	457.2 mm	457.2 mm	Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2C0110003084i	RG-174	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Black	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2C0110005108i	RG-316	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Copper	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-2C0110005003i	RG-316	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Copper	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	3 in	76.2 mm
Amphenol Custom Cable Q-2C01100051.5M	RG-316	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Copper	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-2C0110005006i	RG-316	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Copper	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	6 in	152.4 mm
Amphenol Custom Cable Q-2C0110005003M	RG-316	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Copper	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-2C0110003108i	RG-174	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Black	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-2C0110003001M	RG-174	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Black	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-2C0110003002M	RG-174	Bulkhead - Front Side Nut	MCX Jack	50 Ohms	N-Type Plug Right Angle	Shielded	Black	Female	6000 MHz			Panel Mount	MCX to N-Type	Free Hanging (In-Line)	Male	78.7 in	2 m	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.37
		25	$ 86.66
		50	$ 84.96
		100	$ 83.25
		250	$ 81.55

Description

General part information

Q-2C0110 Series

Cable Assembly Coaxial MCX to N-Type RG-174 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
