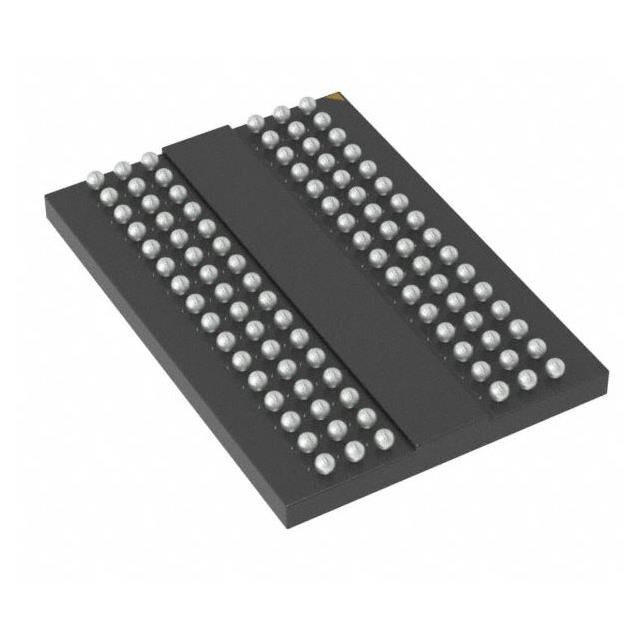

NDL26PFI-9MET

Active

Insignis Technology Corporation

IC DRAM 2GBIT PARALLEL 96FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NDL26PFI-9MET

Active

Insignis Technology Corporation

IC DRAM 2GBIT PARALLEL 96FBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1500	$ 6.34
		3000	$ 6.35

Description

General part information

NDL26 Series

SDRAM - DDR3L Memory IC 2Gbit Parallel 933 MHz 96-FBGA (7.5x13)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NDL26PFI-9MET	NDL26 Series

Access Time	-	20 ns
Clock Frequency	933 MHz	800 - 933 MHz
Memory Format	DRAM	DRAM
Memory Interface	Parallel	Parallel
Memory Organization	128 M	128 M
Memory Size	2 Gbit	2 Gbit
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	95 °C	95 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	96-VFBGA	96-VFBGA
Supplier Device Package	96-FBGA (7.5x13)	96-FBGA (7.5x13)
Technology	SDRAM - DDR3L	SDRAM - DDR3L
Voltage - Supply [Max]	1.45 V	1.45 V
Voltage - Supply [Min]	1.283 V	1.283 V
Write Cycle Time - Word, Page	-	15 ns

NDL26 Series

IC DRAM 2GBIT PARALLEL 96FBGA

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Type	Memory Format	Technology	Clock Frequency	Package / Case	Memory Size	Memory Interface	Memory Organization	Supplier Device Package	Write Cycle Time - Word, Page	Access Time
Insignis Technology Corporation NDL26PFI-8KET	1.45 V	1.283 V	95 °C	0 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	800 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)
Insignis Technology Corporation NDL26PFI-9MET	1.45 V	1.283 V	95 °C	0 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	933 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)
Insignis Technology Corporation NDL26PFJ-8KET TR	1.45 V	1.283 V	95 °C	0 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	800 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
Insignis Technology Corporation NDL26PFJ-9MET TR	1.45 V	1.283 V	95 °C	0 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	933 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
Insignis Technology Corporation NDL26PFI-9MIT	1.45 V	1.283 V	95 °C	-40 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	933 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
Insignis Technology Corporation NDL26PFI-9MIT TR	1.45 V	1.283 V	95 °C	-40 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	933 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
Insignis Technology Corporation NDL26PFI-8KIT	1.45 V	1.283 V	95 °C	-40 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	800 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
Insignis Technology Corporation NDL26PFI-9MET TR	1.45 V	1.283 V	95 °C	0 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	933 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
Insignis Technology Corporation NDL26PFJ-8KIT TR	1.45 V	1.283 V	95 °C	-40 °C	Surface Mount	Volatile	DRAM	SDRAM - DDR3L	800 MHz	96-VFBGA	2 Gbit	Parallel	128 M	96-FBGA (7.5x13)	15 ns	20 ns
