CBP25-C

Active

Panduit Corp

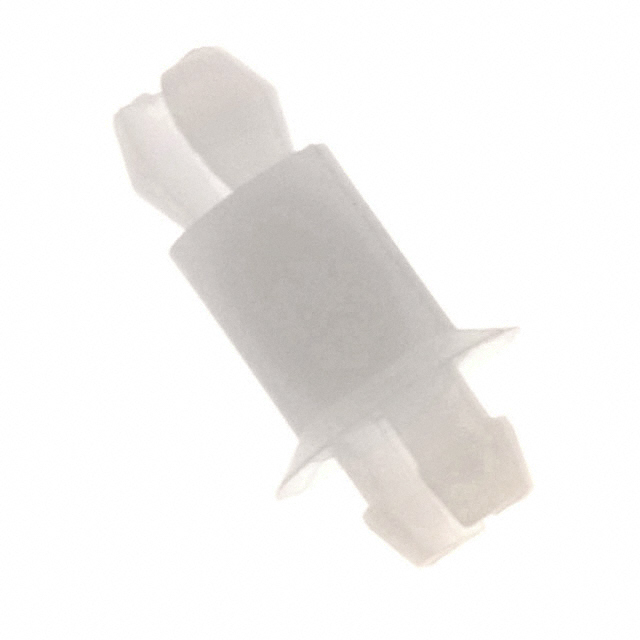

BRD SPT SNAP FIT/LOCK NYLON 1/4"

Search across all available documentation for this part.

Active

Panduit Corp

BRD SPT SNAP FIT/LOCK NYLON 1/4"

Technical Specifications

Parameters and characteristics for this part

Specification	CBP25-C

Between Board Height	6.35 mm
Between Board Height	0.25 in
Between Board Height	0.25 in
Holding Type	Snap Fit
Length - Overall [x]	0.531 "
Length - Overall [x]	13.5 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in
Mounting Panel Thickness	1.5 mm
Mounting Panel Thickness	0.06 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.06 in
Support Panel Thickness	1.5 mm

BRD SPT SNAP FIT/LOCK NYLON 1/4"

Part	Holding Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Mounting Type
Panduit Corp CBP25-C	Snap Fit	1.5 mm	0.06 in	3.96 mm	0.15625 in	0.156 in	Nylon	0.15625 in	3.96 mm	0.156 in	0.531 "	13.5 mm	0.06 in	1.5 mm	6.35 mm	0.25 in	0.25 in	Snap Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Snap Lock Nylon 0.250" (6.35mm) 1/4"
