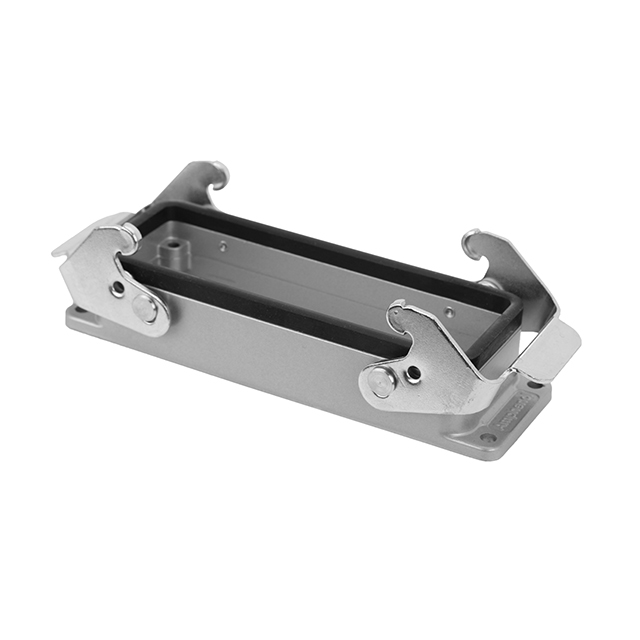

C14611F0249018

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE24

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE24

Technical Specifications

Parameters and characteristics for this part

Specification	C14611F0249018

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	140 mm
Size / Dimension [x]	5.512 "
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	1.193 "
Size / Dimension [z]	30.3 mm
Style	Bottom Entry

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Ingress Protection	Style	Lock Location	Housing Finish	Size	Housing Color
Amphenol Tuchel Industrial C14611F0249018	125 °C	-40 °C	Base - Panel Mount	140 mm	48 mm	1.193 "	5.512 "	30.3 mm	1.89 in	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Bottom Entry	Locking Clip (2) on Base Bottom	EMC Coating	E24	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 19.77

General part information

Base - Panel Mount Connector Bottom Entry E24 IP65 - Dust Tight, Water Resistant
