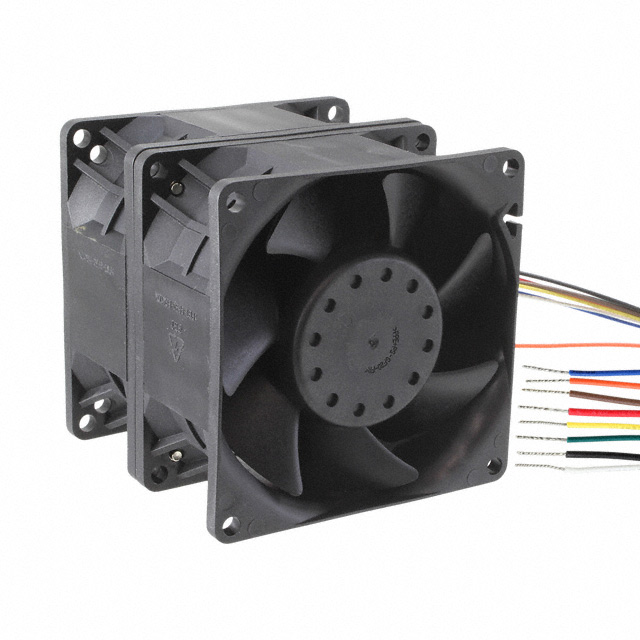

GFC0848DWB74

Obsolete

Delta Electronics

FAN AXIAL DUAL 80X80MM 48VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL DUAL 80X80MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	GFC0848DWB74

Air Flow	4.9 mł/min
Air Flow	175 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.56 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP51 - Dust Protected
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	76.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	74.88 W
RPM [custom]	12500 RPM
RPM [custom]	11000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	4.47 in H2O
Static Pressure	1113.4 Pa
Termination	4 Wire Leads per Fan
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	0.855 lb
Weight	387.82 g
Width [y]	80 mm

Part	Approval Agency	Fan Type	Voltage - Rated [custom]	Current Rating (Amps)	Material - Frame	Ingress Protection	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Features	RPM [custom]	RPM [custom]	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Noise	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Termination	Bearing Type	Width [y]
Delta Electronics GFC0848DWB74	CE cURus TUV	Tubeaxial (Dual)	48 VDC	1.56 A	Plastic	IP51 - Dust Protected	4.9 mł/min	175 CFM	80 mm	80 mm	0.855 lb	387.82 g	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12500 RPM	11000 RPM	70000 Hrs	60 V	36 VDC	4.47 in H2O	1113.4 Pa	76.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	74.88 W	4 Wire Leads per Fan	Ball	80 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial (Dual) 48VDC Square - 80mm L x 80mm H Ball 175.0 CFM (4.90m³/min) 4 Wire Leads per Fan
