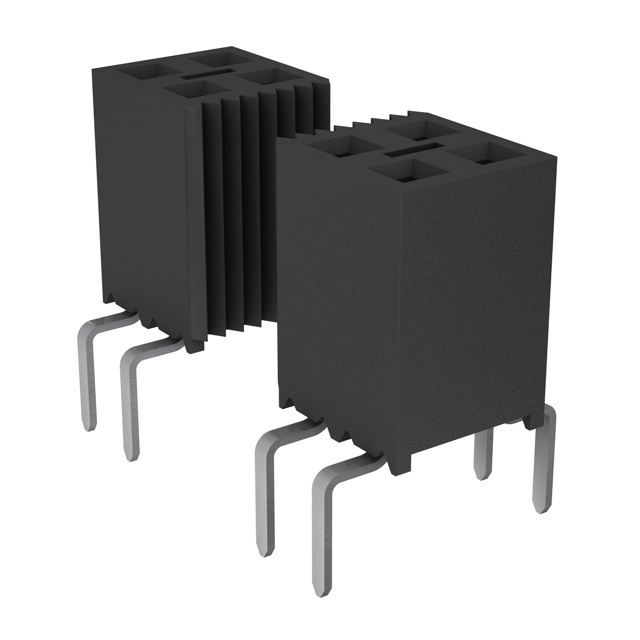

BCS-118-S-D-PE-BE

Active

Samtec Inc.

CONN RCPT 36POS 0.1 GOLD PCB

BCS-118-S-D-PE-BE

Active

Samtec Inc.

CONN RCPT 36POS 0.1 GOLD PCB

Description Specifications Series Pricing CAD Documents

Description

General part information

BCS-118 Series

36 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold

Technical Specifications

Parameters and characteristics for this part

Specification	BCS-118-S-D-PE-BE

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Post	0.128 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	4.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.29 in
Insulation Material	Glass Filled, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Style	Board
Termination	Solder
Voltage Rating	475 VAC

BCS-118 Series

Part	Insulation Height	Insulation Color	Style	Contact Finish Thickness - Mating	Row Spacing - Mating	Fastening Type	Number of Positions Loaded	Contact Type	Contact Finish - Post	Termination	Contact Length - Post	Material Flammability Rating	Number of Rows	Pitch - Mating	Voltage Rating	Mounting Type	Number of Positions	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Current Rating (Per Contact)	Contact Material	Contact Shape	Insulation Material
Samtec Inc. BCS-118-L-D-PE-BE	0.29 in	Black	Board	10 µin	0.1 in	Push-Pull	All	Female Socket	Tin	Solder	0.128 in	UL94 V-0	2	0.1 in	475 VAC	Through Hole	36	Gold	125 °C	-55 °C	Pass Through Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-L-S-DE	0.29 in	Black	Board	10 µin		Push-Pull	All	Female Socket	Tin	Solder	0.12 in	UL94 V-0	1	0.1 in	475 VAC	Through Hole	18	Gold	125 °C	-55 °C	Bottom or Top Entry Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-S-D-PE-BE	0.29 in	Black	Board	30 µin	0.1 in	Push-Pull	All	Female Socket	Tin	Solder	0.128 in	UL94 V-0	2	0.1 in	475 VAC	Through Hole	36	Gold	125 °C	-55 °C	Pass Through Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-F-S-PE-BE	0.29 in	Black	Board	3 µin		Push-Pull	All	Female Socket	Tin	Solder	0.128 in	UL94 V-0	1	0.1 in	475 VAC	Through Hole	18	Gold	125 °C	-55 °C	Pass Through Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-T-S-TE	0.29 in	Black	Board			Push-Pull	All	Female Socket	Tin	Solder	0.122 in	UL94 V-0	1	0.1 in	475 VAC	Through Hole	18	Tin	125 °C	-55 °C	Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-S-D-PE	0.29 in	Black	Board	30 µin	0.1 in	Push-Pull	All	Female Socket	Tin	Solder	0.128 in	UL94 V-0	2	0.1 in	475 VAC	Through Hole	36	Gold	125 °C	-55 °C	Pass Through Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-S-D-TE	0.29 in	Black	Board	30 µin	0.1 in	Push-Pull	All	Female Socket	Tin	Solder	0.122 in	UL94 V-0	2	0.1 in	475 VAC	Through Hole	36	Gold	125 °C	-55 °C	Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-F-S-TE	0.29 in	Black	Board	3 µin		Push-Pull	All	Female Socket	Tin	Solder	0.122 in	UL94 V-0	1	0.1 in	475 VAC	Through Hole	18	Gold	125 °C	-55 °C	Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-T-S-HE	0.11 in	Black	Board			Push-Pull	All	Female Socket	Tin	Solder	0.125 in	UL94 V-0	1	0.1 in	475 VAC	Right Angle Through Hole	18	Tin	125 °C	-55 °C	Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)
Samtec Inc. BCS-118-F-S-DE	0.29 in	Black	Board	3 µin		Push-Pull	All	Female Socket	Tin	Solder	0.12 in	UL94 V-0	1	0.1 in	475 VAC	Through Hole	18	Gold	125 °C	-55 °C	Bottom or Top Entry Receptacle	4.6 A	Phosphor Bronze	Square	Glass Filled Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BCS-118-S-D-PE-BE | Datasheet
