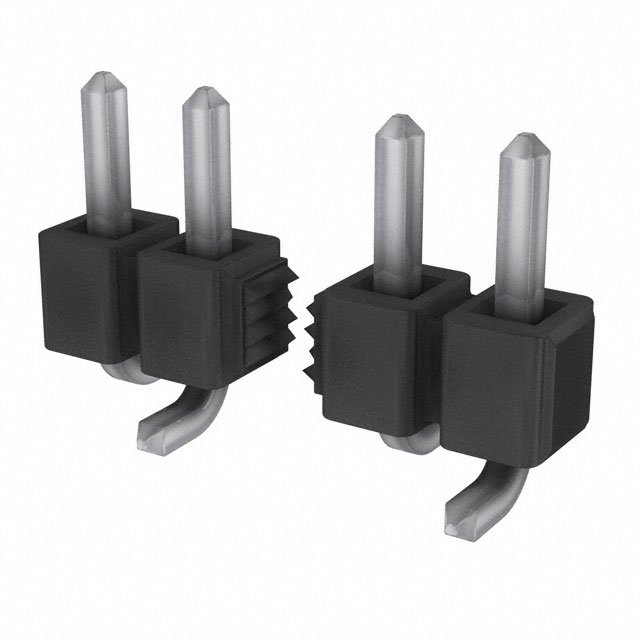

TSM-111-04-T-SV-P-TR

Active

Samtec Inc.

CONN HEADER SMD 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-111-04-T-SV-P-TR

Active

Samtec Inc.

CONN HEADER SMD 11POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-111-04-T-SV-P-TR

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-111 Series

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Features	Material Flammability Rating	Mounting Type	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Style	Contact Shape	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Contact Type	Insulation Material	Shrouding	Contact Material	Number of Rows	Number of Positions	Connector Type	Contact Length - Mating	Number of Positions Loaded
Samtec Inc. TSM-111-01-S-DH-A-P-TR	2.54 mm	0.1 in	Black	30 Áin	0.76 Ám	0.1 in	2.54 mm	Board Guide Pick and Place	UL94 V-0	Surface Mount Right Angle	Solder	All	-55 °C	125 °C	0.23 in	5.84 mm	0.24 in	6.1 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	2	22 positions	Header
Samtec Inc. TSM-111-01-L-DV-A-P	2.54 mm	0.1 in	Black	10 çin	0.25 çm	0.1 in	2.54 mm	Board Guide Pick and Place	UL94 V-0	Surface Mount	Solder	All	-55 °C	125 °C	0.23 in	5.84 mm	0.1 in	2.54 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	2	22 positions	Cuttable Header
Samtec Inc. TSM-111-03-SM-DV-A-P	2.54 mm	0.1 in	Black	30 Áin	0.76 Ám	0.1 in	2.54 mm	Board Guide Pick and Place	UL94 V-0	Surface Mount	Solder	All	-55 °C	125 °C		10.67 mm	0.1 in	2.54 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	2	22 positions	Cuttable Header	0.42 in
Samtec Inc. TSM-111-01-S-SH-A-TR			Black	30 Áin	0.76 Ám	0.1 in	2.54 mm	Board Guide	UL94 V-0	Surface Mount Right Angle	Solder	All	-55 °C	125 °C	0.23 in	5.84 mm	0.12 in	3.05 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	1	11	Header
Samtec Inc. TSM-111-01-L-SH-P			Black	10 çin	0.25 çm	0.1 in	2.54 mm	Pick and Place	UL94 V-0	Surface Mount Right Angle	Solder	All	-55 °C	125 °C	0.23 in	5.84 mm	0.12 in	3.05 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	1	11	Header
Samtec Inc. TSM-111-01-TL-DV	2.54 mm	0.1 in	Black			0.1 in	2.54 mm		UL94 V-0	Surface Mount	Solder	All	-55 °C	105 ░C	0.23 in	5.84 mm	0.1 in	2.54 mm	Board to Board Cable	Square		Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	2	22 positions	Cuttable Header
Samtec Inc. TSM-111-04-T-SV-P-TR			Black			0.1 in	2.54 mm	Pick and Place	UL94 V-0	Surface Mount	Solder	All	-55 °C	105 ░C		3.05 mm	0.1 in	2.54 mm	Board to Board Cable	Square		Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	1	11	Cuttable Header	0.12 in
Samtec Inc. TSM-111-01-F-DV-A	2.54 mm	0.1 in	Black	3 µin	0.076 µm	0.1 in	2.54 mm	Board Guide	UL94 V-0	Surface Mount	Solder	All	-55 °C	125 °C	0.23 in	5.84 mm	0.1 in	2.54 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	2	22 positions	Cuttable Header
Samtec Inc. TSM-111-01-L-SH-A			Black	10 çin	0.25 çm	0.1 in	2.54 mm	Board Guide	UL94 V-0	Surface Mount Right Angle	Solder	All	-55 °C	125 °C	0.23 in	5.84 mm	0.12 in	3.05 mm	Board to Board Cable	Square	Gold	Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	1	11	Header
Samtec Inc. TSM-111-01-TL-SH-007			Black			0.1 in	2.54 mm		UL94 V-0	Surface Mount Right Angle	Solder		-55 °C	105 ░C	0.23 in	5.84 mm	0.12 in	3.05 mm	Board to Board Cable	Square		Push-Pull	Tin	Male Pin	Liquid Crystal Polymer (LCP)	Unshrouded	Phosphor Bronze	1	11	Header		10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.21

Description

General part information

TSM-111 Series

Connector Header Surface Mount 11 position 0.100" (2.54mm)
