ABS15S

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 1.2KV 2A ABS

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 1.2KV 2A ABS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABS15S	ABS15 Series

Current - Average Rectified (Io)	2 A	2 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C

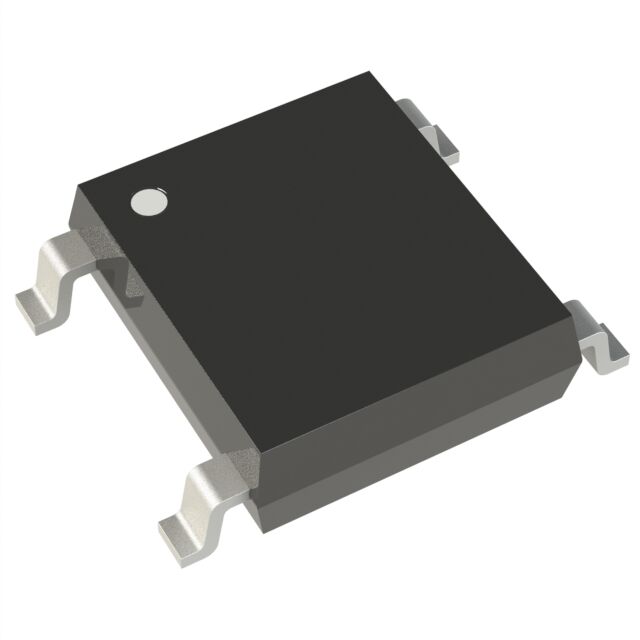

Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing
Supplier Device Package	ABS	ABS
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 - 1.3 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV	1.2 - 800 kV

BRIDGE 1PH SODIL 2000V 2A 150DEG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Technology	Current - Average Rectified (Io)	Diode Type	Mounting Type	Supplier Device Package	Package / Case
Diotec Semiconductor ABS15Y	150 °C	-50 °C	1.3 V	5 µA	2 kV	Standard	2 A	Single Phase	Surface Mount	ABS	4-SMD, Gull Wing
Diotec Semiconductor ABS15S	150 °C	-50 °C	1.1 V	5 µA	1.2 kV	Standard	2 A	Single Phase	Surface Mount	ABS	4-SMD, Gull Wing
Diotec Semiconductor ABS15K	150 °C	-50 °C	1.1 V	5 µA	800 V	Standard	2 A	Single Phase	Surface Mount	ABS	4-SMD, Gull Wing
Diotec Semiconductor ABS15J	150 °C	-50 °C	1.1 V	5 µA	600 V	Standard	2 A	Single Phase	Surface Mount	ABS	4-SMD, Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.05

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Surface Mount ABS
