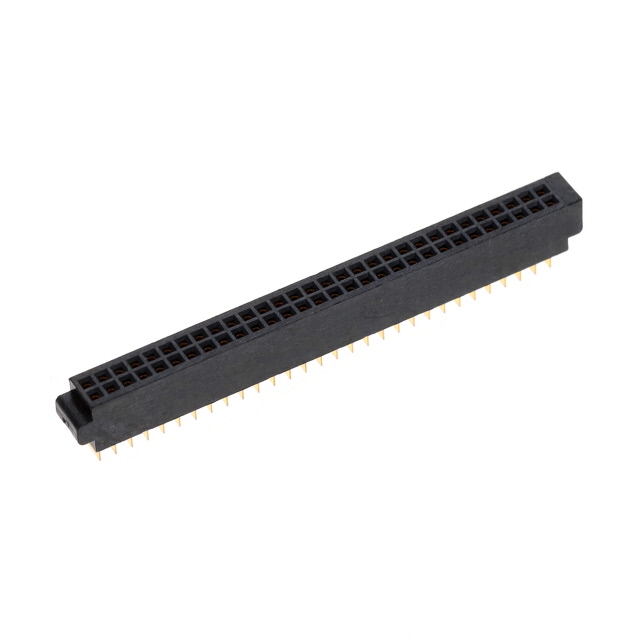

SFMH-130-02-L-D

Active

Samtec Inc.

.050'' X .050 SOCKET STRIP ASSEM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFSH, SFMH Series Datasheet Datasheet

SFMH-130-02-L-D

Active

Samtec Inc.

.050'' X .050 SOCKET STRIP ASSEM

Deep-Dive with AI

DocumentsFSH, SFMH Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFMH-130-02-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

SFMH-130 Series

Part	Connector Type	Fastening Type	Material Flammability Rating	Number of Rows	Number of Positions	Contact Material	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Current Rating (Amps)	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Features
Samtec Inc. SFMH-130-02-L-D	Receptacle	Push-Pull	UL94 V-0	2	60	Phosphor Bronze	Gold	Surface Mount Right Angle	10 çin	0.25 çm	Female Socket	Gold	Square	Flash	All	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	Black	2.6 A	3.43 mm	0.135 "	-55 °C	125 °C
Samtec Inc. SFMH-130-02-L-D-WT	Receptacle	Push-Pull	UL94 V-0	2	60	Phosphor Bronze	Gold	Surface Mount Right Angle	10 çin	0.25 çm	Female Socket	Gold	Square	Flash	All	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	Black	2.6 A	3.43 mm	0.135 "	-55 °C	125 °C	Solder Retention
Samtec Inc. SFMH-130-02-L-D-LC-TR	Receptacle	Push-Pull	UL94 V-0	2	60	Phosphor Bronze	Gold	Surface Mount Right Angle	10 çin	0.25 çm	Female Socket	Gold	Square	Flash	All	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	Black	2.6 A	3.43 mm	0.135 "	-55 °C	125 °C
Samtec Inc. SFMH-130-02-L-D-LC	Receptacle	Push-Pull	UL94 V-0	2	60	Phosphor Bronze	Gold	Surface Mount Right Angle	10 çin	0.25 çm	Female Socket	Gold	Square	Flash	All	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	Black		3.43 mm	0.135 "	-55 °C	125 °C
Samtec Inc. SFMH-130-02-F-D-LC-TR	Receptacle	Push-Pull	UL94 V-0	2	60	Phosphor Bronze	Gold	Surface Mount Right Angle	3 µin	0.076 µm	Female Socket	Gold	Square	Flash	All	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	Black	2.6 A	3.43 mm	0.135 "	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.33
		10	$ 15.46
		25	$ 14.88
		50	$ 14.51
		100	$ 13.53

Description

General part information

SFMH-130 Series

60 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

FSH, SFMH Series Datasheet

Datasheet
