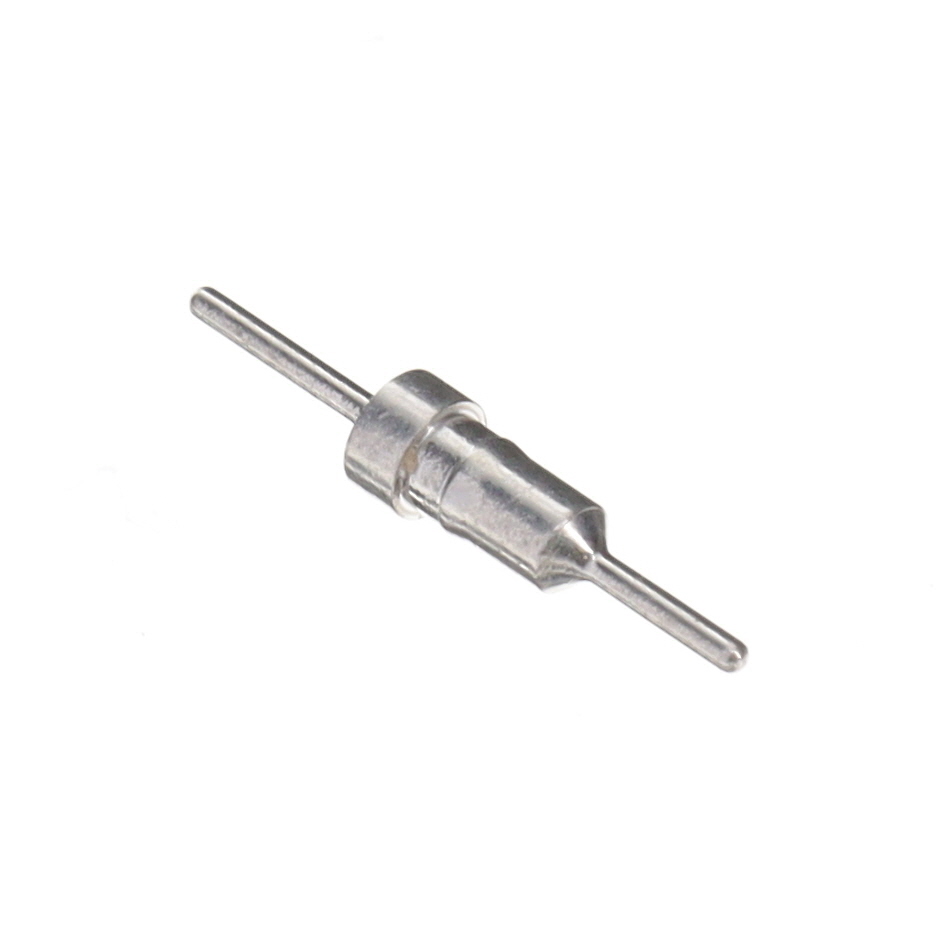

3404-0-00-01-00-00-03-0

Active

Mill-Max Manufacturing Corp.

PRINTED CIRCUIT PIN TIN/NICKEL

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

PRINTED CIRCUIT PIN TIN/NICKEL

Technical Specifications

Parameters and characteristics for this part

Specification	3404-0-00-01-00-00-03-0

Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Insulation	Non-Insulated
Length - Above Flange [x]	0.142 in
Length - Above Flange [x]	3.61 mm
Length - Below Flange [x]	0.217 in
Length - Below Flange [x]	5.51 mm
Length - Overall [x]	0.394 "
Length - Overall [x]	10 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.46 mm
Pin Size - Above Flange [diameter]	0.018 in
Pin Size - Below Flange [diameter]	0.46 mm
Pin Size - Below Flange [diameter]	0.018 "
Terminal Style	Double End
Terminal Type	PC Pin
Termination	Press-Fit

Part	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Mounting Type	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material	Terminal Style	Length - Overall [x]	Length - Overall [x]	Terminal Type	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Contact Finish	Insulation
Mill-Max Manufacturing Corp. 3404-0-00-01-00-00-03-0	200 Áin	5.08 Ám	0.46 mm	0.018 in	1.83 mm	0.072 in	0.057 "	1.45 mm	Press-Fit	Through Hole	0.142 in	3.61 mm	Brass Alloy	Double End	0.394 "	10 mm	PC Pin	0.46 mm	0.018 "	0.217 in	5.51 mm	Tin-Lead	Non-Insulated
Mill-Max Manufacturing Corp. 3404-0-00-21-00-00-03-0	20 µin	0.51 µm	0.46 mm	0.018 in	1.83 mm	0.072 in	0.057 "	1.45 mm	Press-Fit	Through Hole	0.142 in	3.61 mm	Brass Alloy	Double End	0.394 "	10 mm	PC Pin	0.46 mm	0.018 "	0.217 in	5.51 mm	Gold	Non-Insulated
Mill-Max Manufacturing Corp. 3404-0-00-15-00-00-03-4	10 Áin	0.25 Ám	0.46 mm	0.018 in	1.83 mm	0.072 in	0.057 "	1.45 mm	Press-Fit	Through Hole	0.217 "	5.51 mm	Brass Alloy	Single End	0.394 "	10 mm	PC Pin	0.46 mm	0.018 "	0.142 in	3.6 mm	Gold	Non-Insulated
