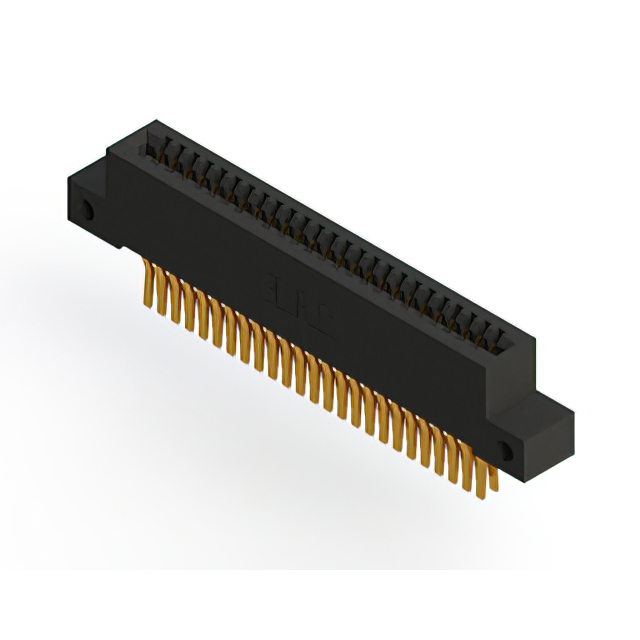

892-050-560-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-050-560-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-050-560-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-050 Series
...
| Part | Contact Finish | Pitch [x] | Pitch [x] | Mounting Type | Color | Material - Insulation | Number of Positions | Contact Type | Termination | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Material | Card Type | Termination Rows | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Gender | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder Eyelet(s) | 25 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | |
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole Right Angle | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder | 25 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | |
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder | 50 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | 1 | 1 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Single | |
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder | 25 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | Card Extender |
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Wire Wrap | 25 | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | ||||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder Eyelet(s) | 50 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | 1 | 1 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Single | |||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder | 25 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | Card Extender | ||
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Wire Wrap | 25 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | |
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Through Hole | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder Eyelet(s) | 25 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | |
EDAC Inc. | Gold | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Black | Polyphenylene Sulfide (PPS) | 50 | Cantilever | Solder | 25 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Dual Edge | 2 | 2 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | Dual | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 88.75 | |
Description
General part information
892-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
