PPTC362KFMS

Obsolete

Sullins Connector Solutions

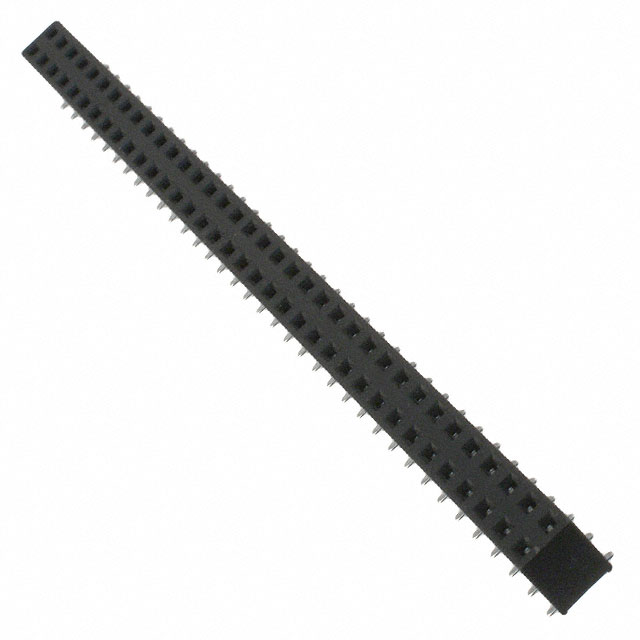

CONN HDR 72POS 0.1 TIN SMD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 72POS 0.1 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC362KFMS

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish - Post	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Insulation Height	Insulation Height	Number of Positions	Termination	Contact Type	Material Flammability Rating	Connector Type	Voltage Rating	Contact Material	Contact Shape	Mounting Type	Fastening Type	Insulation Color	Contact Length - Post
Sullins Connector Solutions PPTC362LFBN-RC	Tin	2	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	All	-40 °C	105 ░C	3.2 mm	0.126 in	Polyester	0.335 "	8.51 mm	72	Solder	Female Socket	UL94 V-0	Header	250 VDC	Phosphor Bronze	Square	Through Hole	Push-Pull	Black
Sullins Connector Solutions PPTC362KFMS	Tin	2	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	All	-40 °C	125 °C			Polyester	0.299 in	7.6 mm	72	Solder	Female Socket	UL94 V-0	Header	250 VDC	Phosphor Bronze	Square	Surface Mount	Push-Pull	Black
Sullins Connector Solutions PPTC362LJBN-RC	Tin	2	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	All	-40 °C	105 ░C	3.15 mm		Polyester			72	Solder	Female Socket	UL94 V-0	Header	250 VDC	Phosphor Bronze	Square	Through Hole Right Angle	Push-Pull	Black	0.124 "
Sullins Connector Solutions PPTC362LFBN	Tin	2	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	All	-40 °C	105 ░C	3.2 mm	0.126 in	Polyester	0.335 "	8.51 mm	72	Solder	Female Socket	UL94 V-0	Header	250 VDC	Phosphor Bronze	Square	Through Hole	Push-Pull	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

72 Position Header Connector 0.100" (2.54mm) Surface Mount Tin
