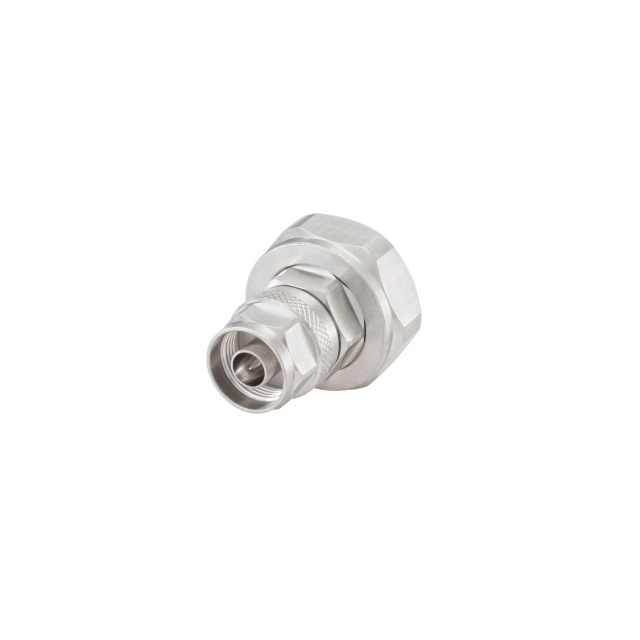

53S160-SIMN1

Active

Rosenberger

N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	53S160-SIMN1

Adapter Series	N to 7/16
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Adapter Series	Conversion Type	Convert From (Adapter End)	Center Contact Material	Mating Cycles	Dielectric Material	Insertion Loss	Impedance	Mounting Type	Center Gender	Body Material	Style	Body Finish	Center Contact Plating	Adapter Type	Frequency - Max [Max]	Convert To (Adapter End)
Rosenberger 53S160-SIMN1	N to 7/16	Between Series	N Plug Male Pin	Brass	500	Polytetrafluoroethylene (PTFE)	0.05 dB	50 Ohms	Free Hanging (In-Line)	Male to Male	Brass	Straight	White Bronze	Silver	Plug to Plug	7.5 GHz	7/16 Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	13	$ 49.17

General part information

Adapter Coaxial Connector N Plug, Male Pin To 7/16 Plug, Male Pin 50 Ohms
