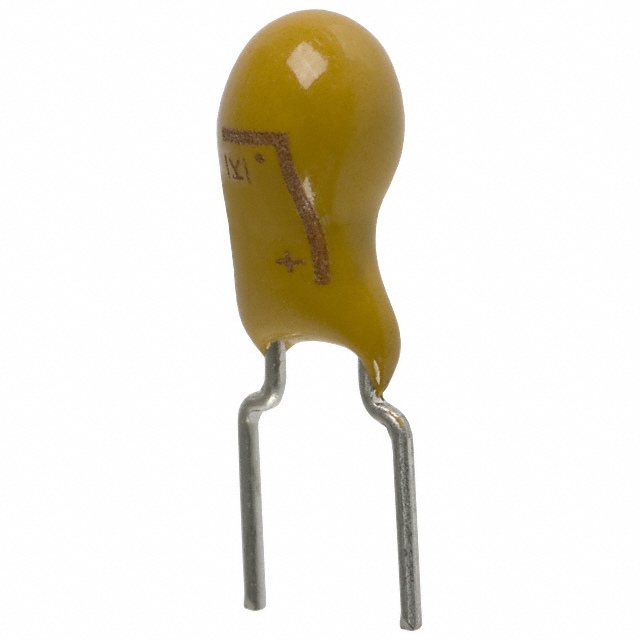

T356E106K020AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, 10 ΜF, 20 V, ± 10%, PC PIN, 5 MM, 2.9 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT356E106K020AT Datasheet +2

T356E106K020AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, 10 ΜF, 20 V, ± 10%, PC PIN, 5 MM, 2.9 OHM

Deep-Dive with AI

DocumentsT356E106K020AT Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T356E106K020AT

Capacitance	10 µF
ESR (Equivalent Series Resistance)	2.9 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	10.2 mm
Height - Seated (Max) [Max] [z]	0.402 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	E
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.217 "
Size / Dimension [diameter]	5.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	20 V

T356E Series

Part	Mounting Type	ESR (Equivalent Series Resistance)	Capacitance	Voltage - Rated	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Manufacturer Size Code	Tolerance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing
KEMET T356E106K020AT	Through Hole	2.9 Ohm	10 µF	20 V	General Purpose	-55 °C	125 °C	Conformal Coated	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E106K016AT	Through Hole	3.2 Ohm	10 µF	16 V	General Purpose	-55 °C	125 °C	Conformal Coated	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E475M035AS	Through Hole	3 Ohm	4.7 µF	35 V	General Purpose	-55 °C	125 °C	Conformal Coated	E	20 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E685K025AS	Through Hole	3.1 Ohm	6.8 ÁF	25 VDC	General Purpose	-55 °C	125 °C	Conformal Coated	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E106K020AT7301	Through Hole		10 µF	20 V	General Purpose	-55 °C	125 °C	Molded	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E475M035AT7301	Through Hole		4.7 µF	35 V	General Purpose	-55 °C	125 °C	Conformal Coated	E	20 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E156K016AT	Through Hole	2.5 Ohm	15 µF	16 V	General Purpose	-55 °C	125 °C	Conformal Coated	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E685J025AT7301	Through Hole	3.1 Ohm	6.8 ÁF	25 VDC	General Purpose	-55 °C	125 °C	Conformal Coated	E	5 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E106K025AT7301	Through Hole	2.5 Ohm	10 µF	25 VDC	General Purpose	-55 °C	125 °C	Conformal Coated	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in
KEMET T356E106K025AT	Through Hole	2.5 Ohm	10 µF	25 VDC	General Purpose	-55 °C	125 °C	Conformal Coated	E	10 %	Radial	0.217 "	5.5 mm	10.2 mm	0.402 "	5.08 mm	0.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.09
		10	$ 3.52
		100	$ 2.63
		1000	$ 2.13
Newark	Each	1000	$ 2.10

Description

General part information

T356E Series

10 µF Conformal Coated Tantalum Capacitors 20 V Radial 2.9Ohm

Documents

Technical documentation and resources

T356E106K020AT

Datasheet

Manufacturer Catalogue EN

Datasheet

Technical Data Sheet EN

Datasheet
