CXM-11-50-80-36-AA00-F2-3

Active

Luminus Devices Inc.

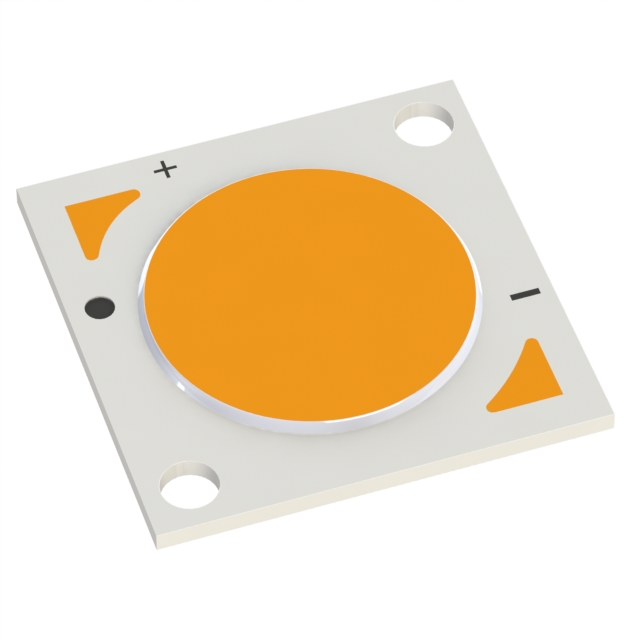

LED COB CXM-11 CL WH RECT 5000K

Deep-Dive with AI

Search across all available documentation for this part.

CXM-11-50-80-36-AA00-F2-3

Active

Luminus Devices Inc.

LED COB CXM-11 CL WH RECT 5000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXM-11-50-80-36-AA00-F2-3

Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Max [Max]	640 mA
Current - Test	320 mA
Height [z]	1.37 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	11 mm
Lumens/Watt @ Current - Test	119 lm/W
Luminous Flux @ Current/Temperature	1335 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	35 V

CXM-11 Series

Part	Type	Temperature - Test	Viewing Angle	Lens Type	Size / Dimension [x]	Size / Dimension [y]	CRI (Color Rendering Index)	Current - Max [Max]	Color	Configuration	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Height [z]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Current - Test	CCT (K)	CCT (K)
Luminus Devices Inc. CXM-11-50-90-36-AB00-F2-3	Chip On Board (COB)	85 °C	120 °	Flat	18.49 mm	18.49 mm	90	1.08 A	Cool White	Square	11.71 mm	33.8 V	1.37 mm
Luminus Devices Inc. CXM-11-50-80-36-AA00-F2-3	Chip On Board (COB)	85 °C	120 °	Flat	19 mm	19 mm	80	640 mA	Cool White	Rectangle	11 mm	35 V	1.37 mm	1335 lm	119 lm/W	320 mA
Luminus Devices Inc. CXM-11-65-70-36-AB00-F2-3	Chip On Board (COB)	85 °C	120 °	Flat	18.49 mm	18.49 mm	70	1.08 A	Cool White	Square	11.71 mm	33.8 V	1.37 mm				6500 K
Luminus Devices Inc. CXM-11-65-80-36-AC00-F2-5	Chip On Board (COB)	85 °C	120 °	Flat	18.49 mm	18.49 mm	80	1.08 A	Cool White	Square	11.71 mm	33.8 V	1.37 mm				6500 K
Luminus Devices Inc. CXM-11-50-70-36-AC30-F4-5	Chip On Board (COB)	85 °C	120 °	Flat	19 mm	19 mm	70	1 A	Cool White	Square	11.7 mm	33.8 V	1.37 mm	2595 lm	171 lm/W	450 mA	5000 K	5-Step MacAdam Ellipse
Luminus Devices Inc. CXM-11-65-70-36-AA30-F4-3	Chip On Board (COB)	85 °C	120 °	Flat			70	1.05 A	Cool White	Square	11.7 mm	33.8 V	1.37 mm	2595 lm	171 lm/W	450 mA	6500 K
Luminus Devices Inc. CXM-11-65-80-36-AB00-F2-5	Chip On Board (COB)	85 °C	120 °	Flat	18.49 mm	18.49 mm	80	1.08 A	Cool White	Square	11.71 mm	33.8 V	1.37 mm				6500 K
Luminus Devices Inc. CXM-11-40-80-36-AC00-F2-3	Chip On Board (COB)	85 °C	120 °	Flat	19 mm	19 mm	80	960 mA	Neutral White	Square	11 mm	35 V	1.37 mm	2040 lm	121 lm/W	480 mA	4000 K
Luminus Devices Inc. CXM-11-32-95-36-AA30-F4-3	Chip On Board (COB)	85 °C	120 °	Flat			95	1.05 A	Warm White	Square	11.7 mm	33.8 V	1.37 mm	1800 lm	118 lm/W	450 mA	3200 K	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-11-40-90-36-AC30-F4-3	Chip On Board (COB)	85 °C	120 °	Flat	19 mm	19 mm	90	1 A	Neutral White	Square	11.7 mm	33.8 V	1.37 mm	2065 lm	136 lm/W	450 mA	4000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	4125	$ 4.15

Description

General part information

CXM-11 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CXM-11 White, Cool Rectangle

Documents

Technical documentation and resources

No documents available
