FCC-8-3-RT

Active

Essentra Access Solutions

CBL CLAMP FLAT BLACK ADHESIVE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLAMP FLAT BLACK ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	FCC-8-3-RT

Adhesive	Acrylic Based (RMS-15)
Color	Black
Features	Flame Retardant
Height [z]	4 mm
Height [z]	0.157 "
Length	50.8 mm
Length	2 in
Material	Polyvinyl Chloride (PVC)
Material Flammability Rating	UL94 V-0
Mounting Type	Adhesive
Opening Size [custom]	1 in
Opening Size [custom]	25.4 mm
Type	Clamp, Flat

Part	Length	Length	Color	Adhesive	Features	Material Flammability Rating	Material	Type	Mounting Type	Height [z]	Height [z]	Opening Size [custom]	Opening Size [custom]	Opening Size [diameter]	Opening Size [diameter]	Opening Size	Opening Size
Essentra Access Solutions FCC-8-3-RT	50.8 mm	2 in	Black	Acrylic Based (RMS-15)	Flame Retardant	UL94 V-0	Polyvinyl Chloride (PVC)	Clamp Flat	Adhesive	4 mm	0.157 "	1 in	25.4 mm
Essentra Access Solutions FCC-24-3-RT	101.6 mm	4 in	Black	Acrylic Based (RMS-15)	Flame Retardant	UL94 V-0	Polyvinyl Chloride (PVC)	Clamp Flat	Adhesive	4 mm	0.157 "	3 in	76.2 mm
Essentra Access Solutions FCC-4-3-RT	38.1 mm	1.5 "	Black	Acrylic Based (RMS-15)	Flame Retardant	UL94 V-0	Polyvinyl Chloride (PVC)	Clamp Flat	Adhesive	4 mm	0.157 "			12.7 mm	0.5 in
Essentra Access Solutions FCC-6-3-RT	43.18 mm	1.7 in	Black	Acrylic Based (RMS-15)	Flame Retardant	UL94 V-0	Polyvinyl Chloride (PVC)	Clamp Flat	Adhesive	4 mm	0.157 "					17.78 mm	0.7 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

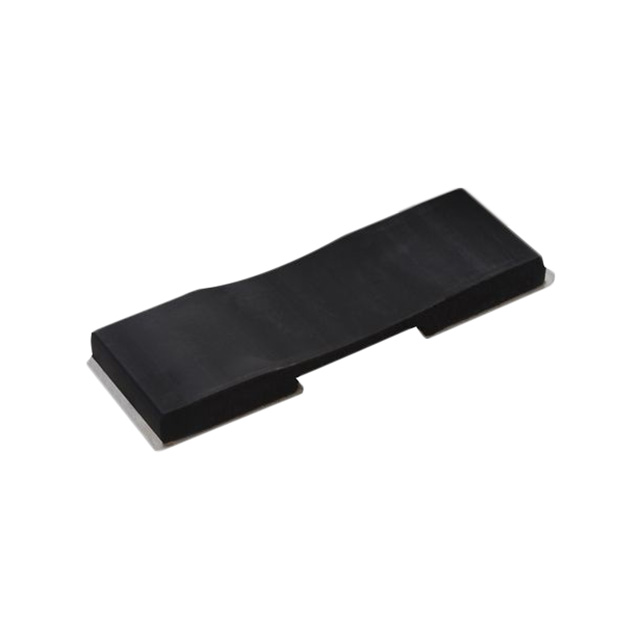

Cable Clamp, Flat Black Adhesive 1.000" (25.40mm)

Technical documentation and resources

No documents available
