1247000-2
ActiveTE Connectivity AMP Connectors

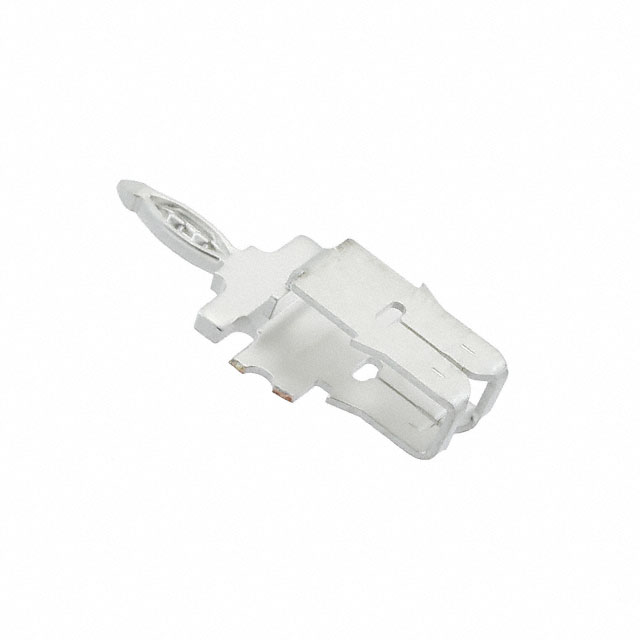

CONN MAG TERM 31-33AWG PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1247000-2
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 31-33AWG PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1247000-2 |
|---|---|
| Size | 2 Liter |
| Style | 300 |
| Terminal Type | Box IDC |
| Termination | Press-Fit |
| Wire Gauge [Max] | 33 AWG |
| Wire Gauge [Min] | 31 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.38 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.28 | |||
| 2500 | $ 0.28 | |||
| Tape & Reel (TR) | 45000 | $ 0.23 | ||
1247000 Series
CONN MAG TERM 31-33AWG PRESS-FIT
| Part | Termination | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Size | Style |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1247000-2 | Press-Fit | Box IDC | 31 AWG | 33 AWG | 2 Liter | 300 |
Description
General part information
1247000 Series
Terminal Magnetic Connector 300 31-33 AWG Press-Fit
