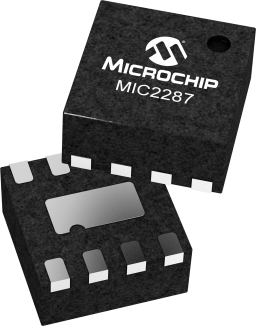

MIC2287-15YML-TR
ActiveWHITE LED DRIVER W/ 15V OVP 8 VDFN 2X2X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MIC2287-15YML-TR
ActiveWHITE LED DRIVER W/ 15V OVP 8 VDFN 2X2X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MIC2287-15YML-TR |
|---|---|
| Applications | Camera Flash, Backlight |
| Current - Output / Channel | 750 mA |
| Dimming | Analog, PWM |
| Frequency | 1.2 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-MLF®, 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-MLF® (2x2) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 15 VDC |
| Voltage - Supply (Max) [Max] | 10 V |
| Voltage - Supply (Min) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.19 | |
| 25 | $ 1.00 | |||
| 100 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.19 | ||
| 25 | $ 1.00 | |||
| 100 | $ 0.90 | |||
| Tape & Reel (TR) | 5000 | $ 0.90 | ||
| Microchip Direct | T/R | 1 | $ 1.19 | |
| 25 | $ 1.00 | |||
| 100 | $ 0.90 | |||
| 1000 | $ 0.88 | |||
| 5000 | $ 0.87 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 0.95 | |
Description
General part information
MIC2287C Series
The MIC2287C is a 1.2MHz pulse width modulated (PWM), boost-switching regulator that is optimized for constant-current, white LED driver applications. With a maximum output voltage of 34V and a switch current of over 500mA, the MIC2287C easily drives a string of up to eight white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors.
The MIC2287C implements a constant frequency, 1.2MHz PWM control scheme. The high frequency PWM operation saves board space by reducing external component sizes. The added benefit of the constant frequency PWM scheme as opposed to variable frequency topologies is much lower noise and input ripple injected back to the battery source.
To optimize efficiency, the feedback voltage is set to only 95mV. This reduces the power dissipation in the current set resistor and allows the lowest total output voltage, hence minimal current draw from the battery.
