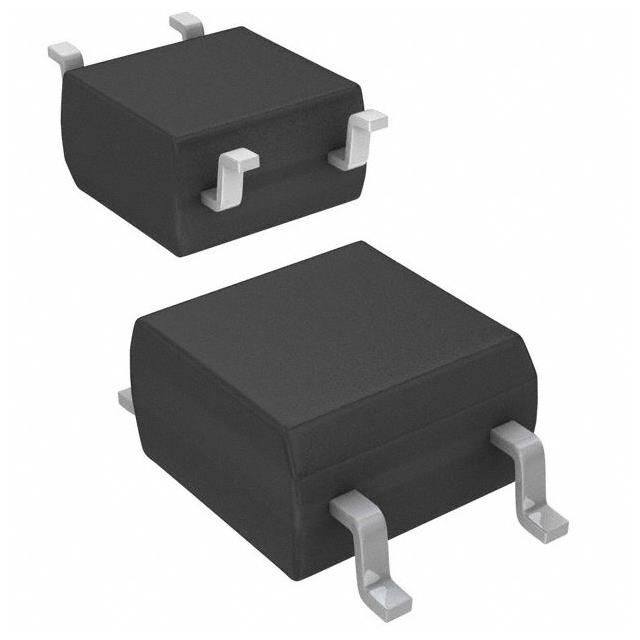

TLX9185A(GBTPL,F
ActiveToshiba Semiconductor and Storage
OPTOISO 3.75KV 1CH TRANS 6-SOP
Deep-Dive with AI
Search across all available documentation for this part.
TLX9185A(GBTPL,F
ActiveToshiba Semiconductor and Storage
OPTOISO 3.75KV 1CH TRANS 6-SOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLX9185A(GBTPL,F |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 30 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) [Max] | 600 % |
| Current Transfer Ratio (Min) [Min] | 100 % |
| Grade | Automotive |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |
| Package / Case | 4 Lead, 0.173 in |
| Package / Case | 6-SOIC |
| Package / Case | 4.4 mm |
| Qualification | AEC-Q101 |
| Rise / Fall Time (Typ) [custom] | 5 µs |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Supplier Device Package | 6-SOP |
| Turn On / Turn Off Time (Typ) | 5 µs |
| Vce Saturation (Max) [Max] | 400 mV |
| Voltage - Forward (Vf) (Typ) | 1.27 V |
| Voltage - Isolation | 3750 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.34 | |
| 10 | $ 2.44 | |||
| 100 | $ 1.91 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.61 | |||
| Digi-Reel® | 1 | $ 3.34 | ||
| 10 | $ 2.44 | |||
| 100 | $ 1.91 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.61 | |||
| Tape & Reel (TR) | 3000 | $ 1.50 | ||
| 6000 | $ 1.45 | |||
Description
General part information
TLX9185 Series
Optoisolator Transistor Output 3750Vrms 1 Channel 6-SOP
