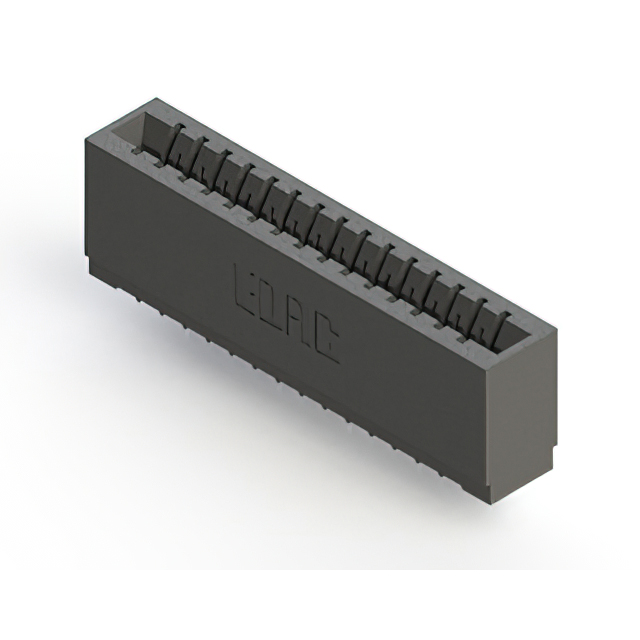

746-015-520-501
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
746-015-520-501
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 746-015-520-501 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Press-Fit |
| Termination Rows | 1 |
746-015 Series
| Part | Termination | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Type | Card Type | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Gender | Number of Positions | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Read Out | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Press-Fit | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit Wire Wrap | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit Wire Wrap | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit Wire Wrap | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
EDAC Inc. | Press-Fit Wire Wrap | 1 | 0.76 Ám | 30 Áin | Gold | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 15 | Female | 15 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Black | Single | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 6.05 | |
Description
General part information
746-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
