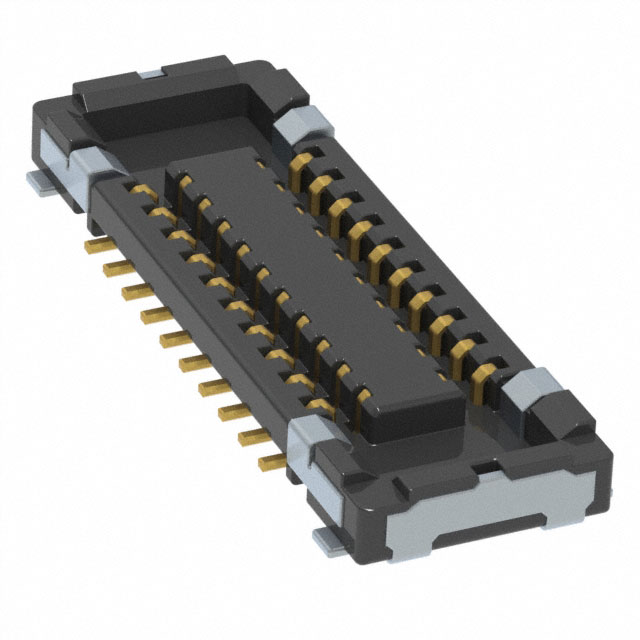

AXG720047A

Obsolete

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG720047A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Contact Finish	Pitch [x]	Pitch [x]	Features	Connector Type	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Number of Positions	Mated Stacking Heights
Panasonic Electric Works AXG720047A	Gold	0.35 mm	0.014 in	Solder Retention	Socket Center Strip Contacts	Surface Mount	2	0.023 in	0.59 mm	20	0.6 mm
Panasonic Electric Works AXG7200J7	Gold	0.35 mm	0.014 in	Solder Retention	Socket Center Strip Contacts	Surface Mount	2	0.023 in	0.59 mm	22	0.6 mm
Panasonic Electric Works AXG720047	Gold	0.35 mm	0.014 in	Solder Retention	Socket Center Strip Contacts	Surface Mount	2	0.023 in	0.59 mm	20	0.6 mm
Panasonic Electric Works AXG720044	Gold	0.35 mm	0.014 in	Solder Retention	Socket Center Strip Contacts	Surface Mount	2	0.023 in	0.59 mm	20	0.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
