28555.4
ActiveConta-Clip, Inc.

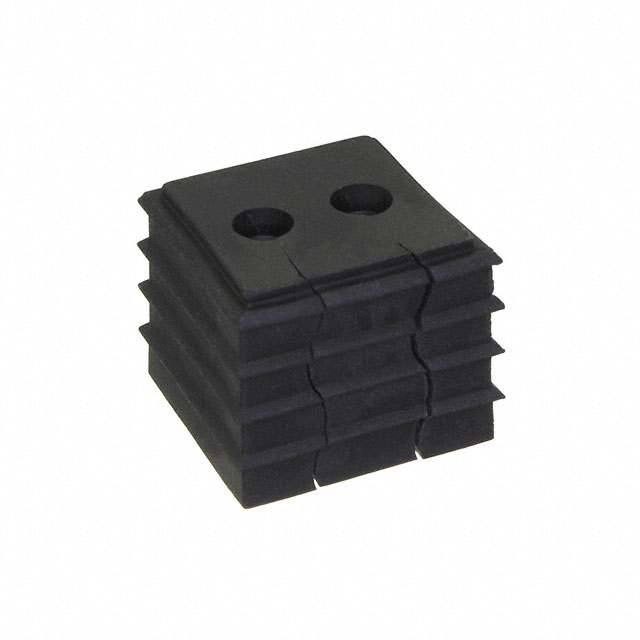

FRAME GROMMET SPLIT TPE BLACK
Deep-Dive with AI
Search across all available documentation for this part.
28555.4
ActiveConta-Clip, Inc.
FRAME GROMMET SPLIT TPE BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28555.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 5 mm, 0.197 in |
| Diameter - Inside [Min] [diameter] | 4 mm, 0.157 " |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | 2 Cable Openings |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [x] | 20.3 mm |
| Panel Cutout Dimensions [x] | 0.799 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.16 | |
| 5 | $ 3.55 | |||
| 10 | $ 3.34 | |||
| 30 | $ 3.04 | |||
| 50 | $ 2.92 | |||
| 100 | $ 2.77 | |||
| 250 | $ 2.60 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.38 | |||
Description
General part information
28555 Series
Square - 0.799" (20.30mm) Frame Grommet, Split 0.157" ~ 0.197" (4.00mm ~ 5.00mm) Black
Documents
Technical documentation and resources
No documents available
