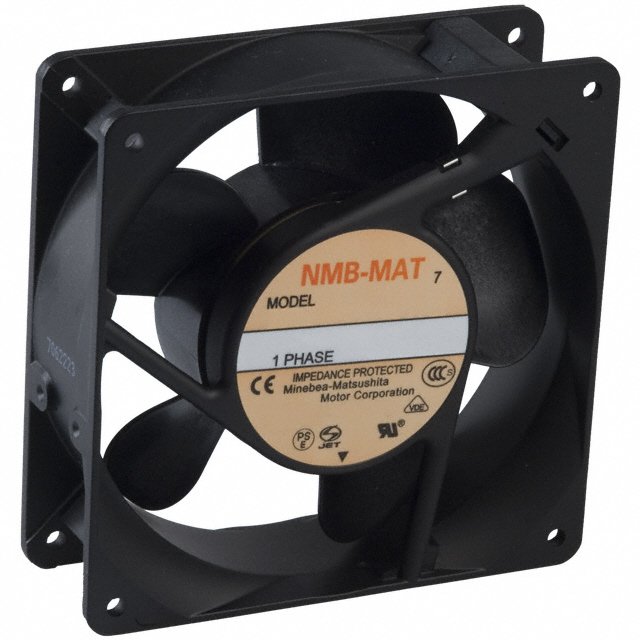

Specification	4715MS-23T-B30-A00

Air Flow	88.2 CFM
Approval Agency	TUV, UL, CSA, VDE, CE
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Lifetime	50000 Hrs
Material - Blade	Polycarbonate, PC, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	37 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	11 W
RPM	2600 RPM
Size / Dimension Height	119 mm
Size / Dimension Length	119 mm
Size / Dimension Shape	Square
Static Pressure	0.208 in H2O
Termination	2 Terminals
Termination Count	2
Voltage - Rated	230 VAC
Weight	1.2 lbs
Width	38 mm

4715MS Series

Part	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	RPM	Bearing Type	Power (Watts)	Air Flow	Weight	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Static Pressure	Fan Type	Termination Count	Termination	Noise	Voltage - Rated	Width	Current Rating	Lifetime	Material - Blade	Material - Frame	Termination Leads Count	Termination Type
NMB TECHNOLOGIES 4715MS-23T-B10-A00	119 mm	Square	119 mm	1450 RPM	Ball	6 W	49.4 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.059 in H2O	Tubeaxial	2	2 Terminals	28 dB	230 VAC	38 mm	45 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-23T-B30-A00	119 mm	Square	119 mm	2600 RPM	Ball	11 W	88.2 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.208 in H2O	Tubeaxial	2	2 Terminals	37 dB	230 VAC	38 mm	0.08 A	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-22T-B40-B00	119 mm	Square	119 mm	2750 RPM	Ball	12 W	95 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.255 in H2O	Tubeaxial	2	2 Terminals	39 dB	220 VAC	38 mm	100 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-20T-B50-B00	119 mm	Square	119 mm	2900 RPM	Ball	13 W	102 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.306 in H2O	Tubeaxial	2	2 Terminals	41 dB	200 VDC	38 mm	120 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-23T-B5A-A00	119 mm	Square	119 mm	2900 RPM	Ball	14 W	102 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.283 in H2O	Tubeaxial	2	2 Terminals	41 dB	230 VAC	38 mm	100 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-22T-B10-B00	119 mm	Square	119 mm	1450 RPM	Ball	5.5 W	49.4 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.059 in H2O	Tubeaxial	2	2 Terminals	28 dB	220 VAC	38 mm	40 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-24T-B20-A00	119 mm	Square	119 mm	1900 RPM	Ball	8 W	67 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.098 in H2O	Tubeaxial	2	2 Terminals	30 dB	240 V	38 mm	60 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-12T-B3A-A00	119 mm	Square	119 mm	2600 RPM	Ball	10 W	88.2 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.2 in H2O	Tubeaxial	2	2 Terminals	37 dB	115 V	38 mm	140 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-12T-B40-A00	119 mm	Square	119 mm	2750 RPM	Ball	13 W	95 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.259 in H2O	Tubeaxial	2	2 Terminals	39 dB	115 V	38 mm	190 mA	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum
NMB TECHNOLOGIES 4715MS-12W-B10-A00	119 mm	Square	119 mm	1450 RPM	Ball	5.5 W	49.4 CFM	1.2 lbs	CE CSA TUV UL VDE	158 °F	14 °F	0.066 in H2O	Tubeaxial		2 Wire Leads	28 dB	115 V	38 mm	0.08 A	50000 Hrs	Fiberglass Reinforced PC Polycarbonate	Aluminum	2 leads	Wire Leads
