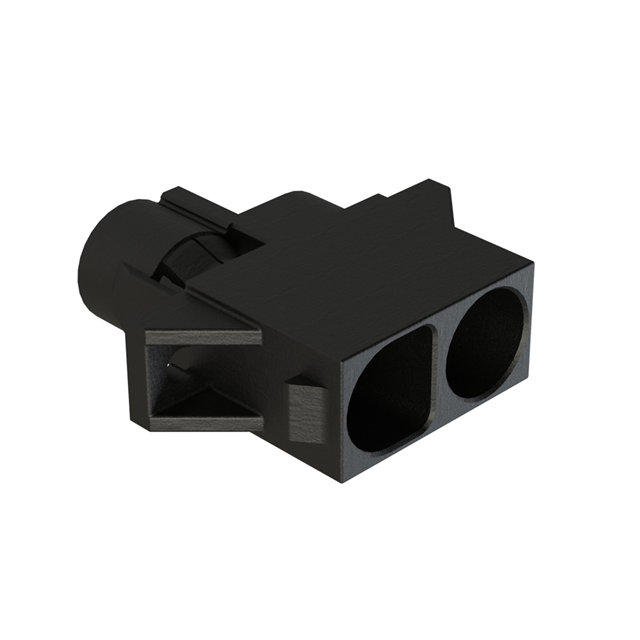

PL000727
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 2POS 11.10MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL000727
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 2POS 11.10MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL000727 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin, Power |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Insulation Material | Thermoplastic |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.437 in |
| Pitch [x] | 11.1 mm |
PL00072 Series
| Part | Fastening Type | Number of Positions | Features | Operating Temperature [Max] | Operating Temperature [Min] | Note | Insulation Material | Pitch [x] | Pitch [x] | Connector Type | Color | Contact Type | Number of Rows | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Locking Ramp | 2 | Mounting Flange | 125 °C | -40 °C | Contacts Not Included | Thermoplastic | 0.437 in | 11.1 mm | Receptacle | Black | Male Pin Power | 1 | Crimp | |
Amphenol Sine Systems Corp | Latch Lock | 2 | 125 °C | -40 °C | Contacts Not Included | Thermoplastic | 0.437 in | 11.1 mm | Plug | Black | Female Socket Power | 1 | Crimp | Panel Mount Snap-In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.56 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.44 | |||
| 200 | $ 0.42 | |||
| 400 | $ 0.38 | |||
| 600 | $ 0.35 | |||
| 1000 | $ 0.34 | |||
Description
General part information
PL00072 Series
2 Rectangular Connectors - Housings Receptacle Black 0.437" (11.10mm)
