9857 0101000

Active

LUMBERG AUTOMATION

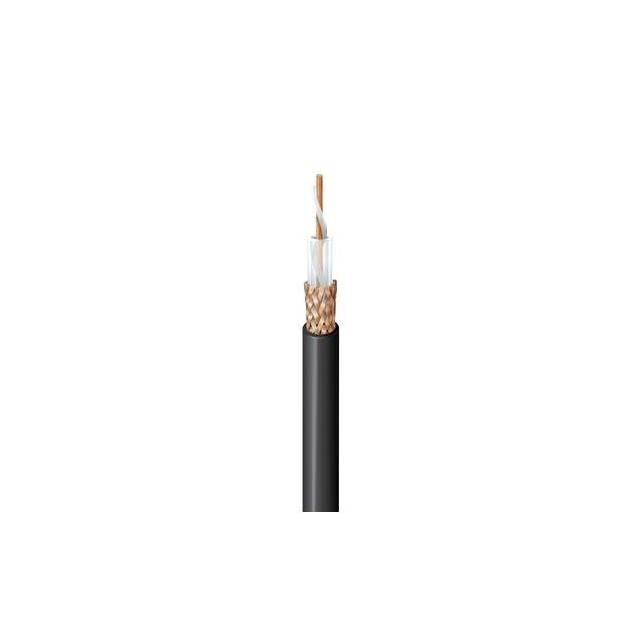

CABLE COAXIAL RG-63 22AWG 1000'

Search across all available documentation for this part.

Active

LUMBERG AUTOMATION

CABLE COAXIAL RG-63 22AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	9857 0101000

Cable Group	RG-63
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	125 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Datacom
VoP, Velocity of Propagation	84
Wire Gauge	22 AWG

Part	Shield Material	Conductor Strand	Cable Type	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Conductor Material	Shield Type	Wire Gauge	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket Color	Jacket (Insulation) Material	VoP, Velocity of Propagation	Cable Group
LUMBERG AUTOMATION 9857 0101000	Copper Bare	Solid	Coaxial	Datacom	-40 °C	80 C	7.24 mm	0.285 in	125 Ohms	Copper Coated Steel	Braid	22 AWG	304.8 m	1000 ft	10.29 mm	0.405 in	95 %	Black	Poly-Vinyl Chloride (PVC)	84	RG-63

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.97

General part information

Coaxial Cable 22 AWG RG-63 1000.0' (304.80m) 125 Ohms
