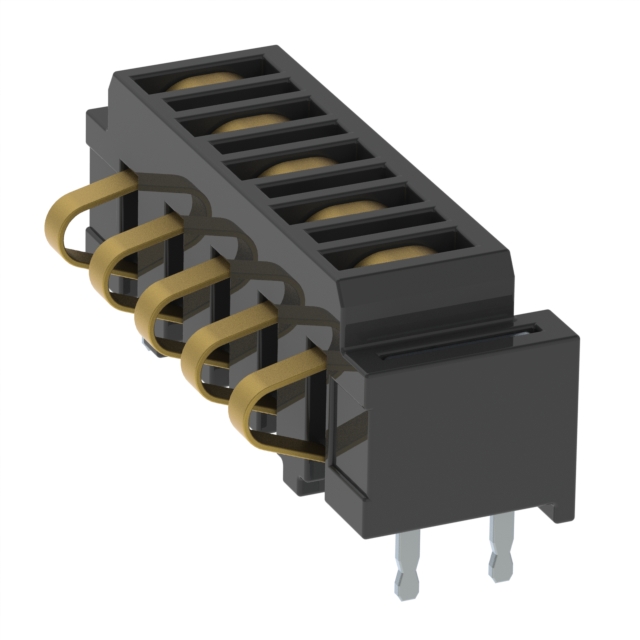

SIR1-05-L-S

Active

Samtec Inc.

CONN SPRING MOD 5POS R/A SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SPRING MOD 5POS R/A SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SIR1-05-L-S

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Mounting Type	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Contacts	Material	Pitch [x]	Pitch [x]
Samtec Inc. SIR1-05-L-S	Surface Mount Right Angle	Gold	Compression Contact Non-Gendered	10 Áin	0.25 Ám	1	5	Phosphor Bronze	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.44

General part information

5 Position Spring Compression Contact, Non-Gendered Connector Surface Mount, Right Angle

Technical documentation and resources

No documents available
