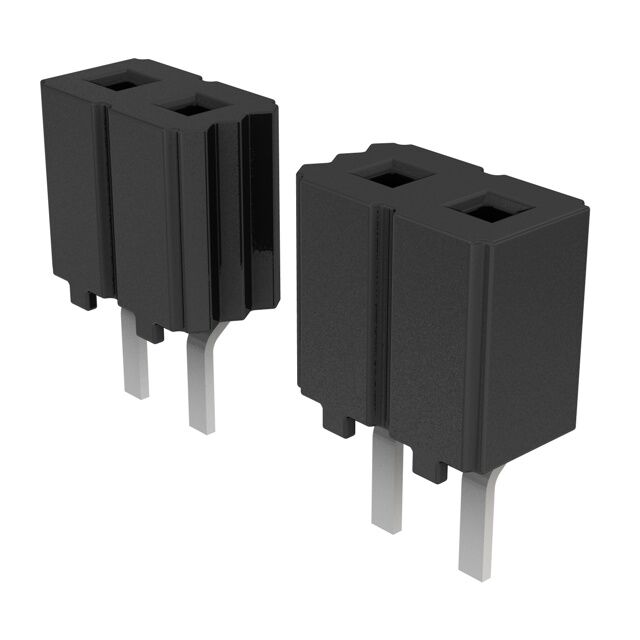

CES-110-02-S-S

Active

Samtec Inc.

CONN RCPT 10POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CES-110-02-S-S

Active

Samtec Inc.

CONN RCPT 10POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-110-02-S-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post [x]	5.66 mm
Contact Length - Post [x]	0.223 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

CES-110 Series

Headers & Wire Housings .100" Closed Entry Low Profile Socket Strip

Part	Contact Type	Contact Material	Number of Rows	Insulation Material	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Fastening Type	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height
Samtec Inc. CES-115-01-T-S	Female Socket	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	105 ░C	-55 °C	15	UL94 V-0	Black	Square	0.1 in	2.54 mm	0.128 "	3.25 mm
Samtec Inc. CES-115-01-L-S	Female Socket	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	125 °C	-55 °C	15	UL94 V-0	Black	Square	0.1 in	2.54 mm	0.128 "	3.25 mm	Gold	10 çin	0.25 çm
Samtec Inc. CES-110-02-S-S	Female Socket	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	125 °C	-55 °C	10	UL94 V-0	Black	Square	0.1 in	2.54 mm			Gold	30 Áin	0.76 Ám	5.66 mm	0.223 in
Samtec Inc. CES-107-01-G-D	Female Socket	Phosphor Bronze	2	Polybutylene Terephthalate (PBT)	Gold	Through Hole	All	Push-Pull	Solder	Receptacle	125 °C	-55 °C	14	UL94 V-0	Black	Square	0.1 in	2.54 mm	0.128 "	3.25 mm	Gold	20 µin	0.51 µm			3 µin	0.076 µm	2.54 mm	0.1 in
Samtec Inc. CES-115-02-F-S-RA	Female Socket	Phosphor Bronze	1	Polybutylene Terephthalate (PBT)	Tin	Through Hole Right Angle	All	Push-Pull	Solder	Receptacle	125 °C	-55 °C	15	UL94 V-0	Black	Square	0.1 in	2.54 mm			Gold	3 µin	0.076 µm	3.05 mm	0.12 in					3.05 mm	0.12 in
Samtec Inc. CES-107-01-T-D	Female Socket	Phosphor Bronze	2	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	105 ░C	-55 °C	14	UL94 V-0	Black	Square	0.1 in	2.54 mm	0.128 "	3.25 mm								2.54 mm	0.1 in
Samtec Inc. CES-115-02-T-D	Female Socket	Phosphor Bronze	2	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	105 ░C	-55 °C	30	UL94 V-0	Black	Square	0.1 in	2.54 mm						5.66 mm	0.223 in			2.54 mm	0.1 in
Samtec Inc. CES-115-02-G-D	Female Socket	Phosphor Bronze	2	Polybutylene Terephthalate (PBT)	Gold	Through Hole	All	Push-Pull	Solder	Receptacle	125 °C	-55 °C	30	UL94 V-0	Black	Square	0.1 in	2.54 mm			Gold	20 µin	0.51 µm	5.66 mm	0.223 in	3 µin	0.076 µm	2.54 mm	0.1 in
Samtec Inc. CES-112-02-T-D	Female Socket	Phosphor Bronze	2	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	105 ░C	-55 °C	24	UL94 V-0	Black	Square	0.1 in	2.54 mm						5.66 mm	0.223 in			2.54 mm	0.1 in
Samtec Inc. CES-110-01-F-D	Female Socket	Phosphor Bronze	2	Polybutylene Terephthalate (PBT)	Tin	Through Hole	All	Push-Pull	Solder	Receptacle	125 °C	-55 °C	20	UL94 V-0	Black	Square	0.1 in	2.54 mm	0.128 "	3.25 mm	Gold	3 µin	0.076 µm					2.54 mm	0.1 in
