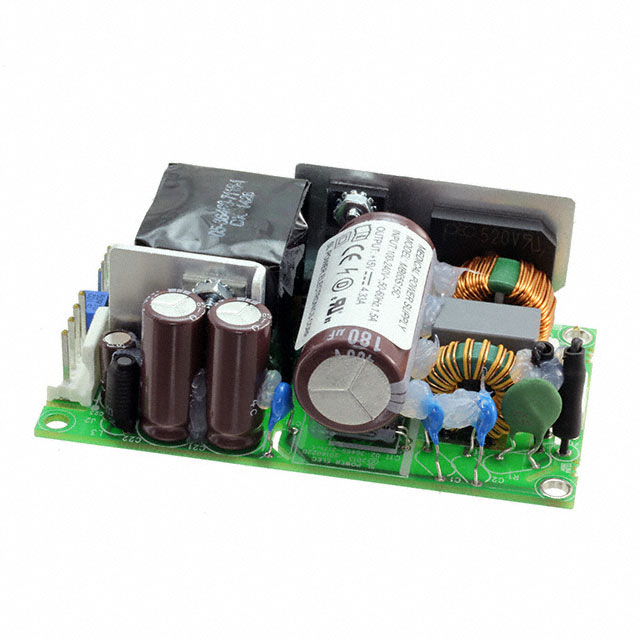

MB65S24K

Active

AC/DC CONVERTER 24V 65W

Active

AC/DC CONVERTER 24V 65W

Description

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Parameters and characteristics for this part

Specification	MB65S24K

Applications	Medical
Approval Agency	CE, UL
Current - Output 1	2.7 A
Efficiency	89 %
Features	Universal Input, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	65 W
Size / Dimension Height	1.3 in
Size / Dimension Length	3.5 in
Size / Dimension Width	2 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4.5 kV
Voltage - Output 1	24 V

Part	Minimum Load Required	Mounting Type	Approval Agency	Current - Output 1	Type	Number of Outputs	Power (Watts)	Applications	Efficiency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Features
SL POWER / Advanced Energy MB65S24K	No	Chassis Mount	CE UL	2.7 A	Open Frame	1	65 W	Medical	89 %	85 VAC	264 V	1.3 in	2 in	3.5 in	24 V	70 °C	-20 °C	4.5 kV	Adjustable Output Universal Input
SL POWER / Advanced Energy MB65S24C	No	Chassis Mount	CE UL	2.7 A	Open Frame	1	65 W	Medical	89 %	85 VAC	264 V	1.3 in	2 in	3.5 in	24 V	70 °C	-20 °C	4.5 kV	Adjustable Output Universal Input
