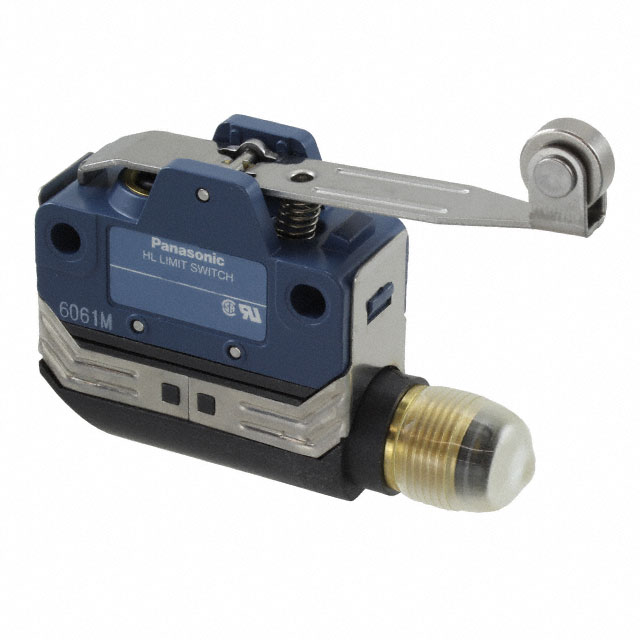

Specification	AZH2321

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating	100 mA
Differential Travel (Linear)	0.025 in
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	0.25 kgf
Operating Position (Length)	0.909 in
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-10 °C
Overtravel (Linear)	0.276 in
Pretravel (Length)	0.157 in
Release Force	40 gf
Switch Function	On-Mom
Termination Style	Connector
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

AZH232 Series

Part	Operating Force	Actuator Type	Current Rating	Switch Function	Voltage Rating - DC	Differential Travel (Linear)	Operating Temperature (Min)	Operating Temperature (Max)	Electrical Life (Cycles)	Voltage Rating - AC	Mounting Type	Termination Style	Release Force	Operating Position (Length)	Mechanical Life (Cycles)	Ingress Protection Description	Ingress Protection IP Rating	Pretravel (Length)	Circuit	Overtravel (Linear)
Panasonic Industrial Automation Sales AZH2321	0.25 kgf	Lever Roller	100 mA	On-Mom	30 V	0.025 in	-10 °C	80 °C	100000 Cycles	125 V	Chassis Mount	Connector	40 gf	0.909 in	10000000 Cycles	Dust Tight Waterproof	IP67	0.157 in	SPDT	0.276 in
