RL0111-1.00-0

Obsolete

TE Connectivity Raychem Cable Protection

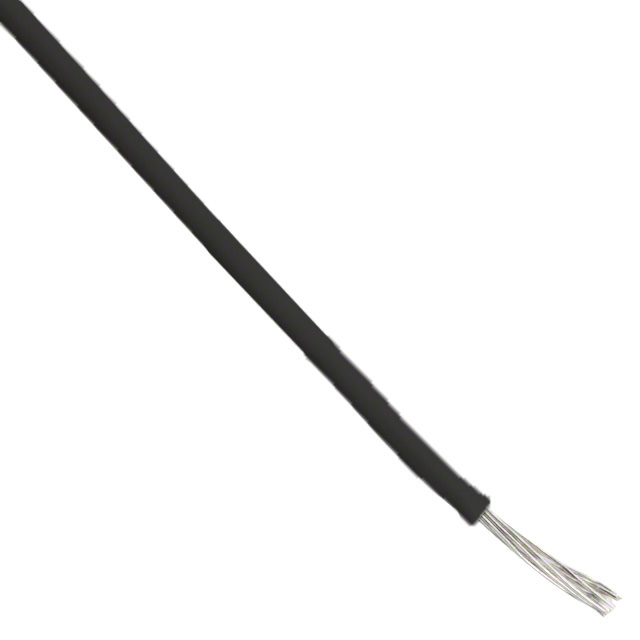

HOOK-UP STRND 1.00MM2 BLK METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RL0111-1.00-0

Obsolete

TE Connectivity Raychem Cable Protection

HOOK-UP STRND 1.00MM2 BLK METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RL0111-1.00-0

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	37
Conductor Strand [custom]	0.0071 in
Jacket (Insulation) Diameter [diameter]	1.8 mm
Jacket (Insulation) Diameter [diameter]	0.071 "
Jacket (Insulation) Material	Polymer
Jacket (Insulation) Thickness	0.007 in
Jacket (Insulation) Thickness	0.18 mm
Jacket Color	Black
Length	Enter Number of Meters in Order Quantity
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Spool Size	16404 ft
Spool Size	5000 m
Voltage	600 V
Wire Gauge	1 mm²

RL0111 Series

Part	Length	Spool Size	Spool Size	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [diameter]	Conductor Strand [diameter]	Conductor Strand [custom]
TE Connectivity Raychem Cable Protection RL0111-1.00-0	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	1.8 mm	0.071 "	600 V	Black	1 mm²	37	0.0071 in	Hook-Up	0.007 in	0.18 mm	Polymer	-40 °C	120 °C
TE Connectivity Raychem Cable Protection RL0111-2.50-0	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	2.48 mm	0.098 in	600 V	Black				Hook-Up	0.011 in	0.28 mm	Polymer	-40 °C	120 °C	2.5 mm˛	0.0118 "	37
TE Connectivity Raychem Cable Protection RL0111-0.75-9	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	1.65 mm	0.065 in	600 V			37	0.0063 in	Hook-Up	0.007 in	0.18 mm	Polymer	-40 °C	120 °C	0.75 mm˛
TE Connectivity Raychem Cable Protection RL0111-0.25-9	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	1.3 mm	0.051 in	600 V			19		Hook-Up	0.007 in	0.18 mm	Polymer	-40 °C	120 °C	0.25 mm˛	0.0051 in
TE Connectivity Raychem Cable Protection RL0111-1.50-0	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	2.31 mm	0.091 "	600 V	Black			0.0091 in	Hook-Up	0.009 in	0.23 mm	Polymer	-40 °C	120 °C	1.5 mm˛		37
TE Connectivity Raychem Cable Protection RL0111-1.50-9	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	2.31 mm	0.091 "	600 V				0.0091 in	Hook-Up	0.009 in	0.23 mm	Polymer	-40 °C	120 °C	1.5 mm˛		37
TE Connectivity Raychem Cable Protection RL0111-1.00-9	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	1.8 mm	0.071 "	600 V		1 mm²	37	0.0071 in	Hook-Up	0.007 in	0.18 mm	Polymer	-40 °C	120 °C
TE Connectivity Raychem Cable Protection RL0111-0.75-0	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	1.65 mm	0.065 in	600 V	Black		37	0.0063 in	Hook-Up	0.007 in	0.18 mm	Polymer	-40 °C	120 °C	0.75 mm˛
TE Connectivity Raychem Cable Protection RL0111-0.50-9	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	1.45 mm	0.057 "	600 V		0.5 mm˛			Hook-Up	0.007 in	0.18 mm	Polymer	-40 °C	120 °C		0.0071 in	19 Strands
TE Connectivity Raychem Cable Protection RL0111-4.00-9	Enter Number of Meters in Order Quantity	16404 ft	5000 m	Copper Tinned	3.25 mm	0.128 in	600 V		4 mm²	56	0.0118 in	Hook-Up	0.011 in	0.28 mm	Polymer	-40 °C	120 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RL0111 Series

1.00mm˛ Hook-Up Wire 37/0.0071" Black 600V Enter Number of Meters in Order Quantity
